1. Introduction
Clean and safe drinking water is essential for public health. Traditional disinfection methods, such as chlorine, have limitations. For instance, they may form harmful byproducts. In contrast, chlorine dioxide (ClO₂) offers a superior solution. It is highly effective against bacteria, viruses, and protozoa. Moreover, it does not produce trihalomethanes (THMs) or other dangerous compounds.
Our chlorine dioxide generator is designed for water treatment plants. It ensures efficient, reliable, and safe disinfection. Let’s explore its features, benefits, and applications.

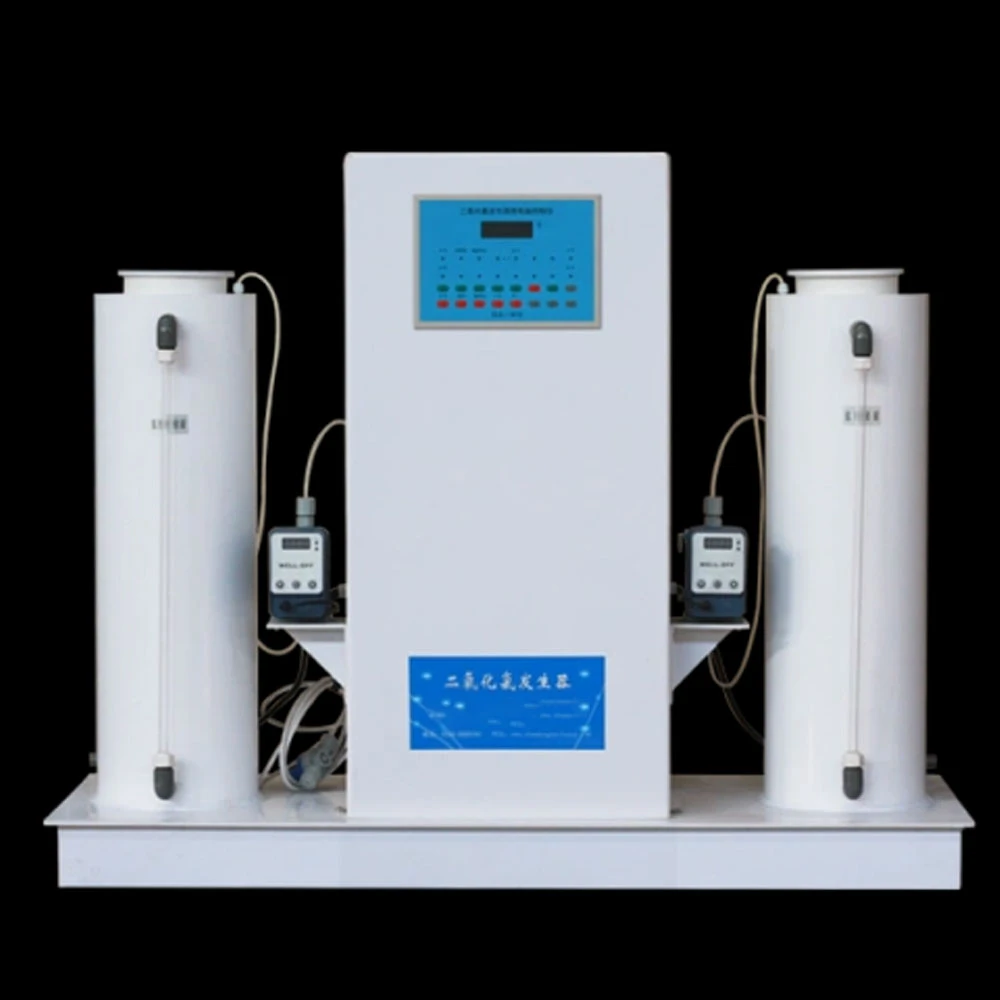

Chlorine Dioxide Generator System
| Model | Chlorine dioxide production (kg/h) |
Hydrodynamic pressure (MPa) |
Power pipe diameter （Φ） |
Dosing pipe diameter （Φ） |
Dimensions (LXBXH) |
|---|---|---|---|---|---|
| SHTC-2000 | 2 | ≥0.3 | 25 | 32 | 630x450x1600 |
| SHTC-3000 | 3 | ≥0.3 | 25 | 32/40 | 680x500x1650 |
| SHTC-5000 | 5 | ≥0.3 | 32 | 40/50 | 700x550x1750 |
| SHTC-7000 | 7 | ≥0.3 | 32 | 40/50 | 760x650x1850 |
| SHTC-10000 | 10 | ≥0.3 | 40 | 50/63 | 760x650x2000 |
2. Why Choose Chlorine Dioxide?
2.1 Powerful Disinfection
Chlorine dioxide is a potent oxidizer. It eliminates pathogens more effectively than chlorine. Additionally, it works across a wide pH range.
2.2 No Harmful Byproducts
Unlike chlorine, ClO₂ does not react with organic matter to form THMs. Therefore, it provides safer water for consumption.
2.3 Effective Against Biofilms
Biofilms in pipelines can harbor bacteria. Chlorine dioxide penetrates and removes them efficiently. As a result, it improves water quality throughout the distribution system.
2.4 Odor and Taste Control
ClO₂ eliminates unpleasant tastes and odors caused by algae or organic compounds. Consequently, it enhances water palatability.

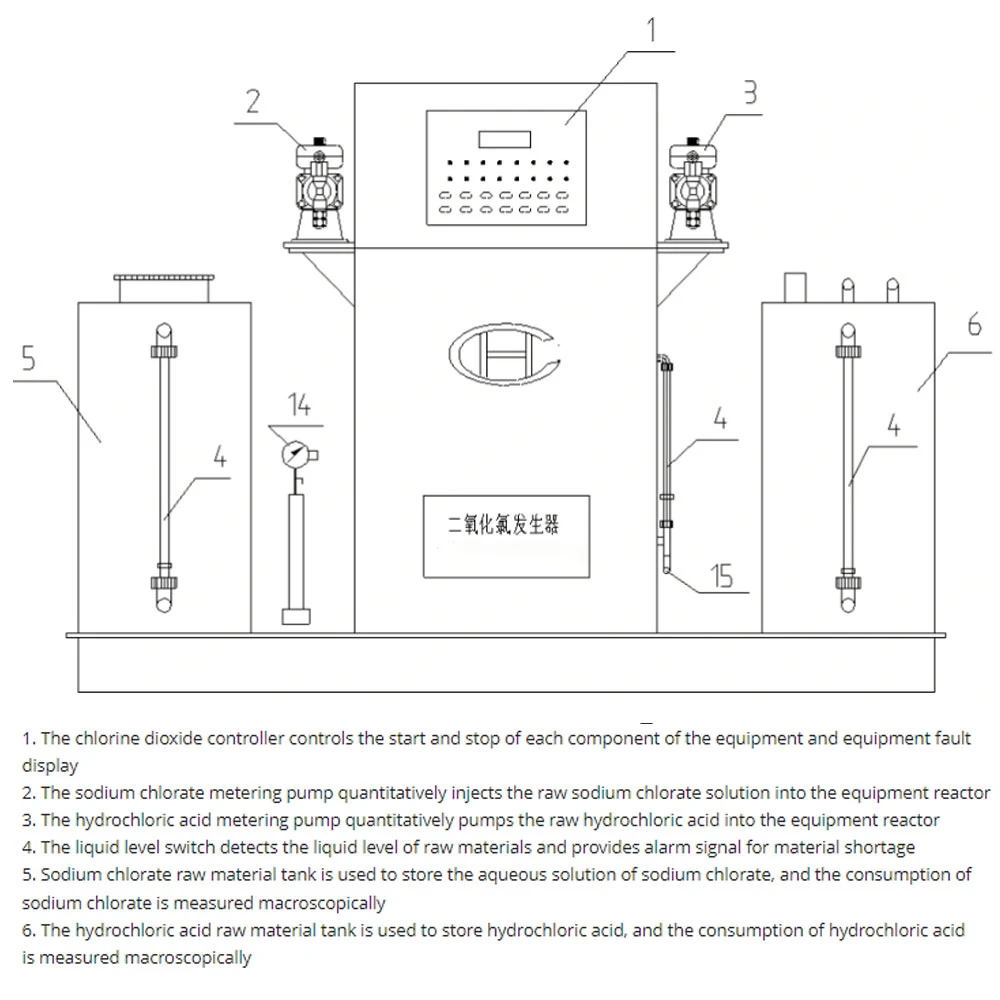

3. How Our Chlorine Dioxide Generator Works
3.1 On-Site Generation
Our system produces ClO₂ on demand. It uses sodium chlorite (NaClO₂) and hydrochloric acid (HCl) or chlorine gas. The reaction is precise and controlled.
3.2 Automated Dosing
Advanced sensors monitor water quality. Then, the system adjusts the dosage automatically. Hence, it ensures consistent disinfection without manual intervention.
3.3 Safe and Reliable Operation
The generator includes multiple safety features. For example, it has leak detectors and emergency shutdown mechanisms. Therefore, operators can trust its performance.
4. Key Features of Our Generator
4.1 High Efficiency
The system converts over 95% of reactants into chlorine dioxide. Thus, it minimizes chemical waste.
4.2 Compact Design
Our generator requires minimal space. Even small water treatment plants can install it easily.
4.3 Low Maintenance
The design uses durable materials. Furthermore, automated cleaning functions reduce downtime.
4.4 Remote Monitoring
Operators can also track performance via a digital interface. Alerts notify them of any issues immediately.
5. Applications in Water Treatment
5.1 Drinking Water Disinfection
Municipal water plants rely on our system for safe, clean water. It meets strict regulatory standards.
5.2 Wastewater Treatment
ClO₂ effectively treats industrial and municipal wastewater. It removes contaminants before discharge.
5.3 Legionella Control
Hospitals and cooling towers use our generator to prevent Legionella outbreaks.
5.4 Food and Beverage Industry
The system ensures water purity in production processes.
