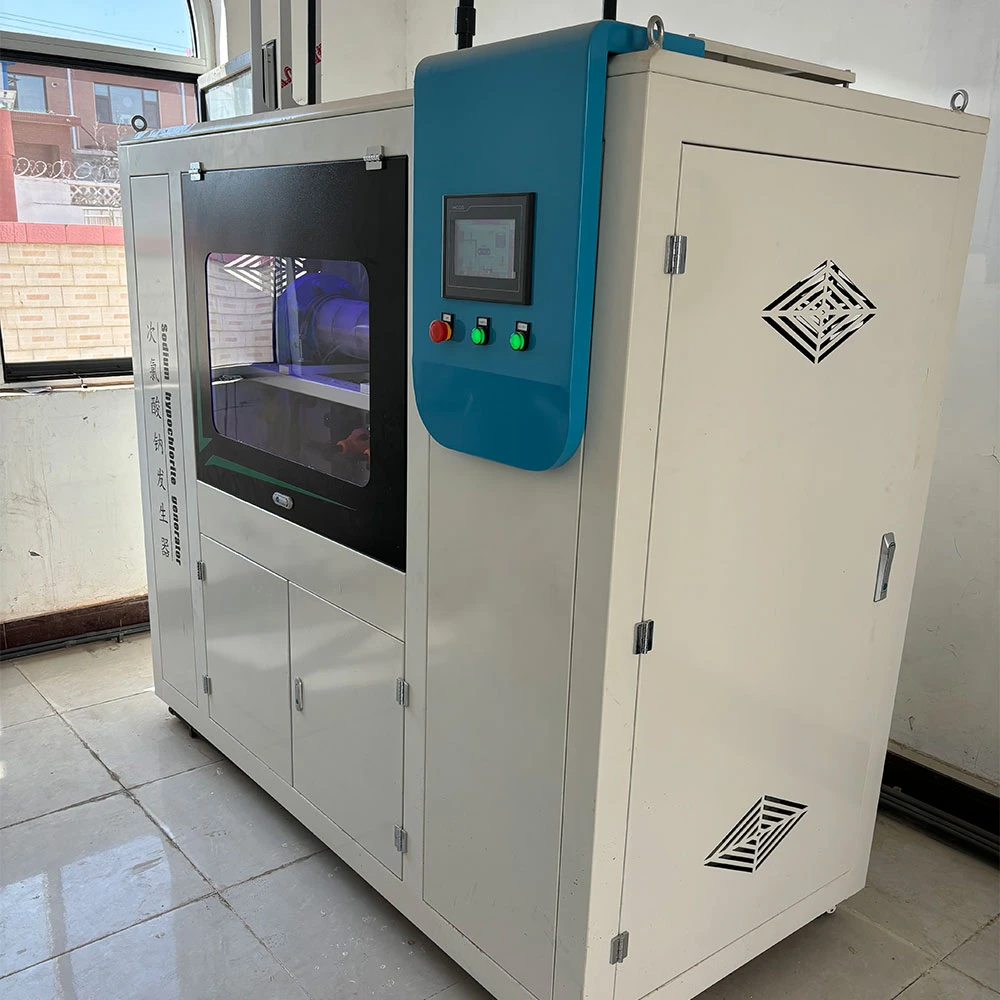

Compact Sodium Hypochlorite Generator

Our compact sodium hypochlorite (NaClO) generator is an efficient, cost-effective solution for small-scale wastewater treatment. It not only produces high-quality disinfectant on-site, but also eliminating the need for hazardous chemical storage. Ideal for small communities, industrial plants, and remote facilities, this system ensures safe, reliable water disinfection.

Key Features

On-Site Generation – Produces sodium hypochlorite instantly, also reducing storage risks.

Low Operating Cost – Uses just only salt, water, and electricity.

Easy Maintenance – Simple design with minimal moving parts.

Adjustable Output – Controls chlorine production also based on demand.

Safe & Eco-Friendly – No transport or handling of hazardous chemicals.

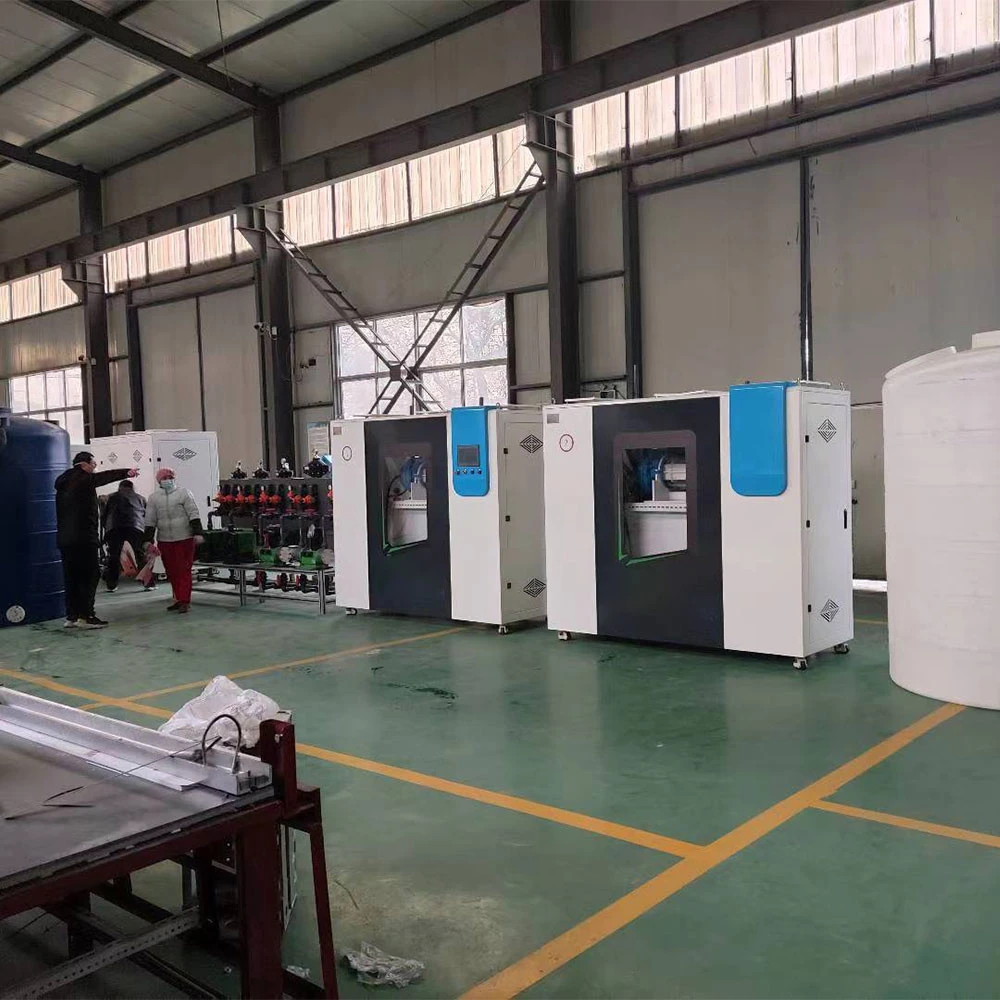

The application site of sodium hypochlorite generator

Sodium hypochlorite generator parameter

Product name	SHT-500G
Effective chlorine yield	500g/H
Concentration	6-10g/L（6000-10000ppm）
Power	3KW
Salt consumption	3.2KG/KG
Size	200011001900MM
Voltage	380V/50Hz

How It Works

At the same time, the generator uses electrolysis to convert saltwater (brine) into sodium hypochlorite. Here’s the process:

Salt Dissolution – Salt mixes with water to form a brine solution.

Electrolysis – The brine also passes through an electrolytic cell, producing chlorine gas.

Mixing & Dilution – Chlorine reacts with water to form sodium hypochlorite.

Dosing – The disinfectant is pumped into wastewater for treatment.

This automated system ensures consistent, also high-quality disinfection.

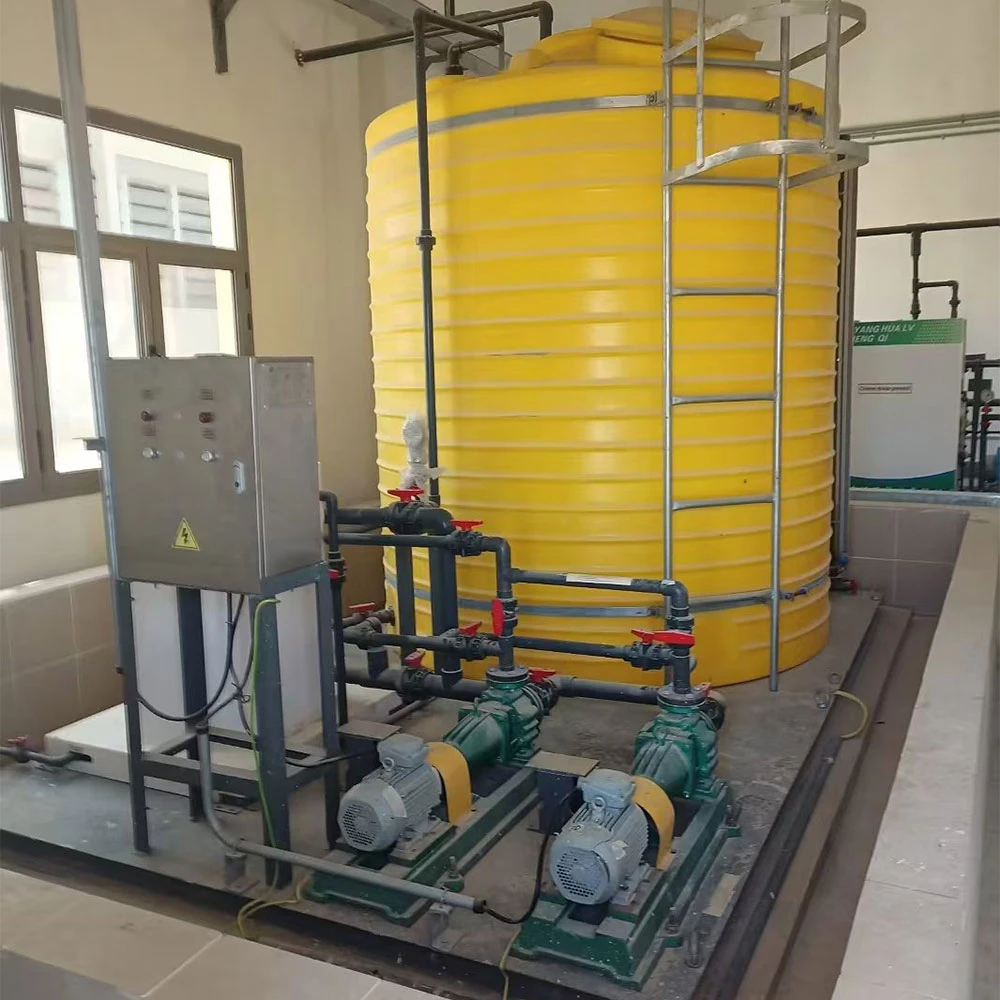

Sodium hypochlorite generator liquid storage tank

Advantages of Our Sodium Hypochlorite Generator

1. Enhanced Safety & Compliance

Unlike traditional chlorine storage, our system eliminates chemical handling risks. Workers avoid exposure to toxic gases or spills. Plus, regulatory compliance becomes simpler since you no longer need hazardous material permits.

2. Cost Savings Over Time

First, salt is cheap and widely available. Second, you cut transportation and storage expenses. Third, maintenance costs stay low because the system has few complex parts. Over time, the generator pays for itself.

3. Reliable Performance in Tough Conditions

Even in remote locations or harsh environments, the generator also works consistently. It adapts to temperature changes and handles varying water quality. Also, it resists scaling better than older models.

4. Easy Installation & Operation

You don’t need specialized training to run the system. Beacuse the control panel is user-friendly, and also automated features reduce manual adjustments. Additionally, installation takes just a few hours.

5. Environmentally Friendly Choice

Since no chlorine tanks are shipped, carbon emissions drop. Also, salt is a natural resource, making the process sustainable. Moreover, no harmful byproducts enter the wastewater.

Applications

Municipal Wastewater – Small communities, rural areas

Industrial Effluents – Food processing, textiles, pharmaceuticals

Hospital & Laboratory Waste – Pathogen disinfection

Aquaculture & Pools – Safe water treatment

FAQ

1. How much salt and power does the system consume?

The generator uses 3–4 kg of salt per kg of NaClO and consumes 4–5 kWh per kg. Exact usage depends on water quality and output settings.

2. What maintenance is required?

Clean the electrolytic cell every 3–6 months (acid wash recommended).

Check salt purity—industrial-grade salt (≥99%) works best.

Inspect pumps and filters periodically.

3. Can it handle varying wastewater flows?

Yes! Therefore, the system adjusts production automatically or manually based on demand.

4. Is the generated chlorine concentration stable?

Absolutely. The system ensures consistent 0.6–1.0% chlorine strength, ideal for disinfection.

Factory advantage

We have R&D centers, production centers, data centers and marketing centers. It is committed to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface, fruits and vegetables, fabrics, heavy metals, polio and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and service system, to meet the needs of different customers with more professional services, so that to provide the best products and services for public health!
