Hypochlorous acid generator in livestock breeding. With the rapid development of large-scale and intensive animal husbandry. Disease prevention and control and environmental deodorization have become a life-or-death issue for large ranches. Although traditional chemical disinfectants (such as caustic soda. Chlorine dioxide, strong chlorine essence, etc.) have certain effects. They are often accompanied by strong irritation, corrosion, residual toxicity. And difficulty in continuous automation and other pain points.
In recent years, hypochlorous acid (HClO) electrolysis of water technology with its “efficient sterilization, safety, non-toxic, green environmental protection” characteristics, is becoming the core tool of modern animal husbandry green transformation. This paper will deeply explore the full scene application of hypochlorous acid generator in animal husbandry and its unparalleled technical advantages.
Hypochlorous acid generator product parameters
| Model Name | Hypochlorous acid generator is used in the livestock farming SHT-SAEW-1000，2000，4000，6000，9000 |
|---|---|
| flow | 100L/H,200L/H，300L/H，500L/H，1000L/H（Flow can be customized） |
| Concentration | 10-500PPM（Adjustable） |
| Electrolyte | Hydrochloric acid (HCL 5%) or table salt (Nacl) |
| Hypochlorous acid PH | 5-6.5 |
| Potassium hydroxide PH | 10-13.5 |
| Voltage | 220V/50Hz，380V/50Hz，110V/60Hz |
| The proportion of hypochlorous acid in ACC | >98.50% |
| Softened water system | One on standby and one in use |
| Weight | 95kg，120kg,180kg，210kg |
| Dimensions of hypochlorous acid generator | Can be customized |
Application scenario of hypochlorous acid generator in animal husbandry
1: Hypochlorous acid for livestock drinking water and pipeline purification
Drinking water safety is the first line of defense for livestock and poultry health. Biosecurity is not only the prevention of external diseases, but also the prevention of internal diseases.
- Sterilization and Disease Prevention: Adding a low concentration of hypochlorous acid online to drinking water can effectively kill pathogens such as E. coli and Salmonella in the water, significantly reducing the incidence of intestinal diseases in livestock and poultry.
- Biofilm Removal: Long-term operation of livestock and poultry drinking water pipelines easily leads to the formation of biofilms composed of bacteria and algae. Creating a breeding ground for pathogens. Hypochlorous acid has extremely strong penetrating power, thoroughly stripping and removing biofilms inside the pipelines. Preventing secondary pollution, and causing almost no corrosion to pipes and drinking nipples.

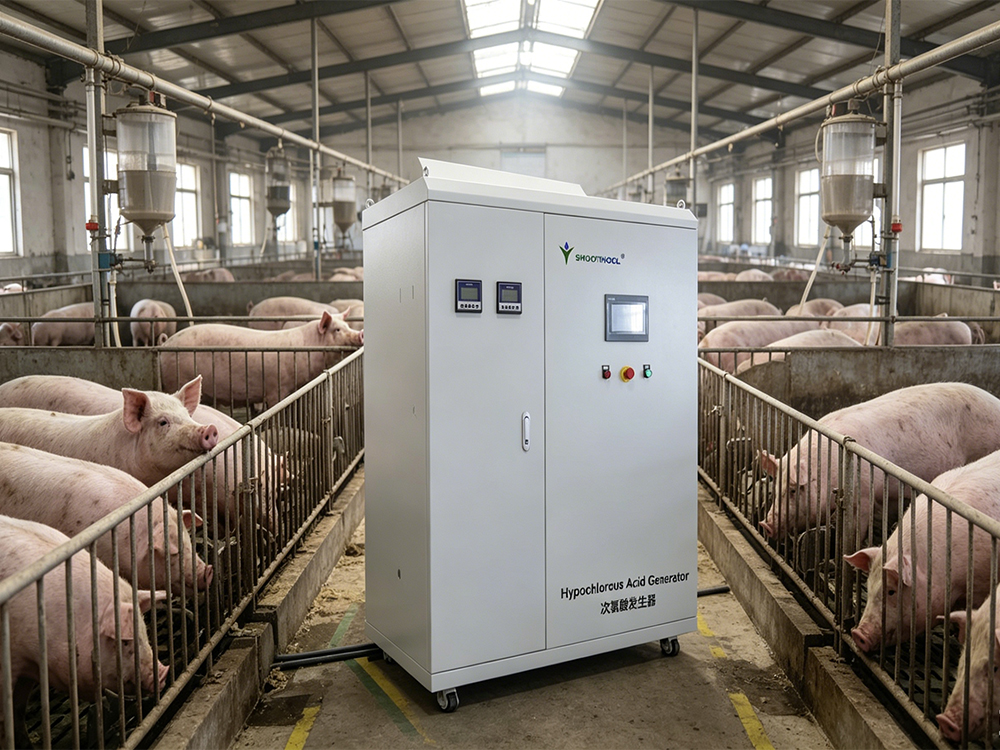

2. Spatial atomization disinfection and highly efficient deodorization
The smelly gases such as ammonia and hydrogen sulfide in the breeding house not only pollute the environment, but also seriously damage the respiratory health of livestock and poultry.
- Disinfection of Livestock (Poultry): Hypochlorous acid has extremely high safety; oral and inhalation toxicity tests have proven it to be harmless to humans and animals. Ranches can directly conduct fully automated atomized disinfection of livestock without blind interruption or relocation, comprehensively killing viruses and bacteria in the air and on the surfaces of the pens.
- Immediate Deodorization: Hypochlorous acid can react with malodorous molecules such as NH3 (ammonia) and H2S (hydrogen sulfide) in the air, fundamentally decomposing the source of odor, rather than simply masking it with traditional fragrances. After atomization, the ammonia concentration in the pens drops sharply, significantly improving the feeding environment.
Core technology Advantages: Why choose high quality hypochlorous acid generator？
Not all hypochlorous acid equipment can meet the demanding industrial-grade application requirements of ranches. An excellent hypochlorous acid generator must possess the core qualities of precision, stability, and durability.
1. Precisely adjustable pH value: Targeting the strongest sterilization point.
The core of hypochlorous acid water’s sterilization effect lies in the content of “hypochlorous acid molecules (HClO) Studies have shown that when the pH value of water is between 5.0 and 6.5, the abundance of HClO$ in electrolyzed water is the highest (approaching 90% or more), and the sterilization efficiency at this point is 80 times that of hypochlorite ions (ClO-）, the main component of traditional 84 disinfectant).
Our hypochlorous acid generator uses an advanced pH precision intelligent control system, which can automatically fine-tune online according to the initial pH and hardness of different water sources on the ranch (such as deep well water and tap water), ensuring that the generated hypochlorous acid water is always stable in the optimal sterilization range, without harming the skin of livestock and poultry or corroding the equipment.
2. 24 hours continuous and stable operation: adapt to the rhythm of large-scale pasture
Modern pig farms with tens of thousands of pigs or large poultry farms require automated drinking water and timed atomized disinfection systems to operate continuously.
This equipment adopts an industrial-grade architecture and intelligent heat dissipation and moisture-proof design, supporting 24/7 continuous operation. Whether facing high-intensity, high-volume emergency disinfection or long-term online drinking water replenishment, the equipment can maintain stable output, eliminating biosecurity gaps caused by downtime for maintenance.
3. Core cell life up to 30,000 hours: very low amortized cost
The electrolyzer is the “heart” of a hypochlorous acid generator. Electrolyzers in ordinary equipment often experience efficiency degradation after only a few thousand hours of operation due to poor electrode coating processes.
Our electrolyzer uses a multi-composite precious metal nano-coating (titanium-based coating), which not only boasts high electrolysis efficiency and extremely strong corrosion resistance, but also an overall design lifespan of up to 30,000 hours. This translates to several years of continuous, high-frequency use on a ranch without the need to replace core components. This high durability reduces the cost per ton of water disinfection on a ranch to an extremely low level, making it a truly long-term asset investment with a high return on investment (ROI).
Hypochlorous acid generator has constructed a green, low carbon and high efficient biosafety barrier for modern animal husbandry. It not only solves the residual and toxic side effects caused by traditional disinfectators, but also uses industrial technical advantages such as precise regulation, 24-hour continuous operation, and 30,000 hours of ultra-long life to help aquaculture enterprises to reduce the cost of comprehensive epidemic prevention and truly realize the win-win situation of ecological aquaculture and economic benefits.
