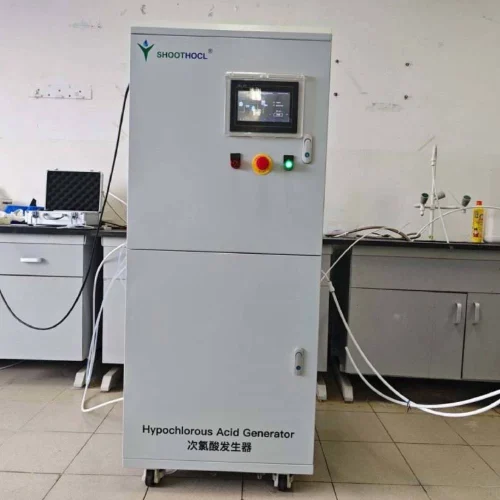

HOCL Generator

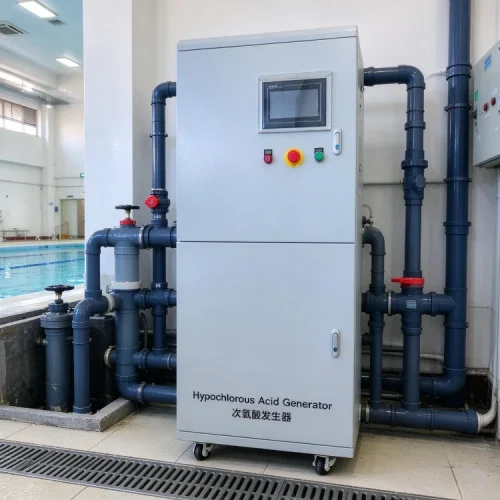

Maintaining water quality is essential for modern swimming pool management. Traditional chlorine dosing carries safety hazards and also storage risks. To solve these issues, we provide state-of-the-art Hypochlorous Acid (HOCl) Generators . Our equipment delivers safe, effective, and also continuous disinfection for swimming pools, water parks, and aquatic centers.

Parameter Table

arameter Items	detail specifications
unit type	SHT-SAEW-50、100、500、1000、2000、5000
Output flow rate	50–5000 L/h
Effective chlorine concentration	10PPM–2000PPM, adjustable
Electrolysis raw materials	NaCl/ Naclo+Hcl
Anolyte pH	5.0–8.0 (adjustable)
Catholyte pH	10–12.5
service voltage	200-240V/50-60Hz (customizable)
Effective proportion of hypochlorous acid	＞98.50%
Filtration system (optional)	RO system or water softening system
Warranty for the complete unit	1 year
Lead time	15–20 days

Equipment includes: main unit, salt tank, installation accessories, instruction manual, maintenance manual and so on.

Flexible Production Technology: Electrolytic vs. Chemical Dosing

We offer two distinct manufacturing processes to meet different project needs and also budget requirements:

Electrolytic Process: This system uses high-grade electrolytic cells to convert pure salt (NaCl) and also water into an active HOCl solution on-site. It requires minimal raw material handling, ensures low operational costs, and also eliminates dangerous chemical storage.

Chemical Mixing Process: This system precise-blends sodium hypochlorite (NaClO) and also hydrochloric acid (HCl) to produce pure HOCl solution instantly. It provides fast reaction rates, consistent output, and also rapid disinfection for large pool facilities.

Each process uses different equipment designs and price points. However, both systems deliver exceptional disinfection power.

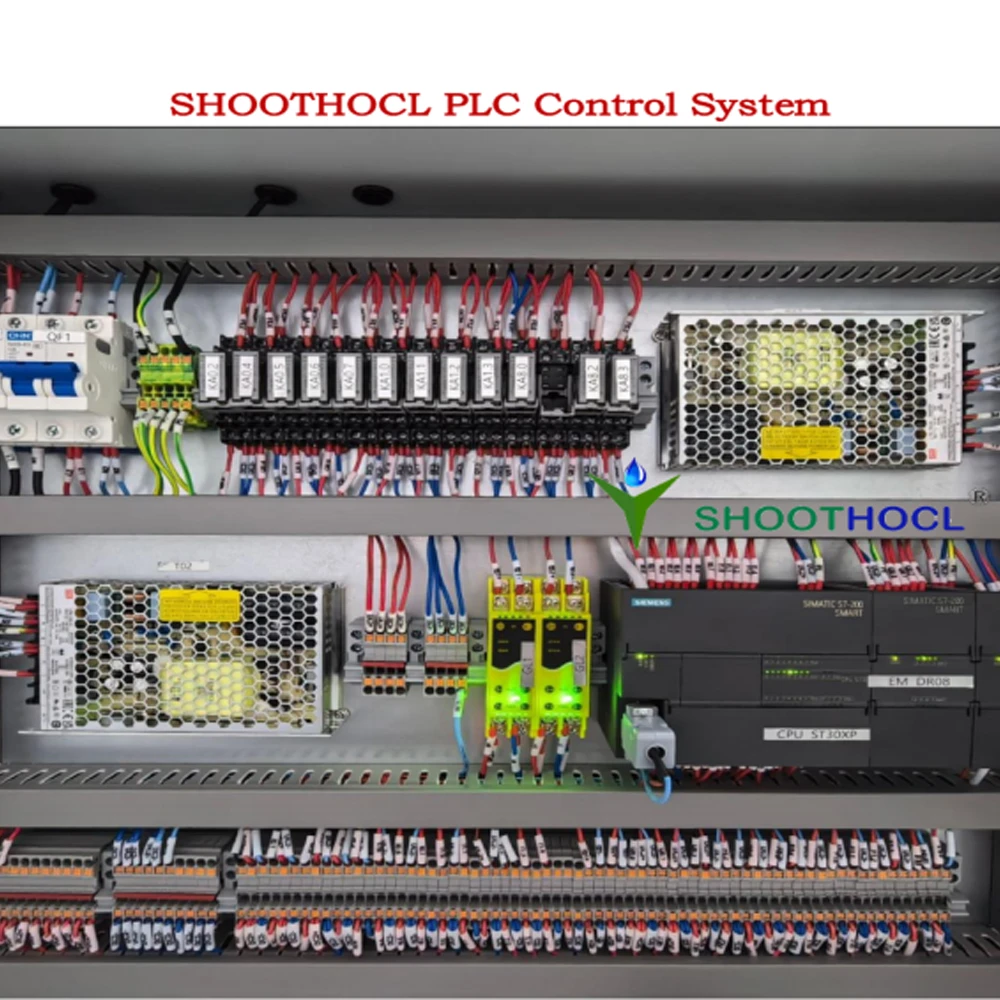

Smart Operations: Siemens PLC Control with Real-Time Feedback

Managing pool chemistry manually is time-consuming and also prone to human error. Our equipment features an advanced Siemens PLC intelligent control system that transforms water management into an automated process at the same time.

Timed Production: You can set pre-programmed daily schedules. The system automatically produces and feeds HOCl solution during peak user hours.

Real-Time Closed-Loop Monitoring: Direct-immersion sensors measure water pH and also free chlorine levels continuously in the pool. The feedback loop dynamically adjusts HOCl production, ensuring swimming pool water consistently meets national safety standards without over-chlorination at the same time.

This automated precision protects swimmer comfort, prevents eye and skin irritation, and keeps water perfectly balanced 24/7.

Premium Hardware Quality and Long-Term Warranty Protection

We back our engineering excellence with industry-leading warranties and also long-lasting components. You receive dependable equipment that reduces long-term maintenance overhead.

One-Year Comprehensive Warranty: Every generator comes with an upgraded, full one-year warranty covering all system components and also control electronics.

30,000-Hour Electrolytic Cell Warranty: For our electrolytic models, we provide an extended warranty of 30,000 operating hours on the electrolytic cell at the same time. Built with ruthenium-iridium titanium coatings, these cells resist corrosion and deliver years of uninterrupted service at the same time.

Purchase Now

Our team delivers end-to-end technical support, from remote installation assistance to long-term maintenance at the same time. Contact us today to upgrade your pool disinfection system!

Get your customized hypochlorite generator solution for swimming pools today!
