3000G Sodium Hypochlorite Generator

Reliable disinfection is the final, most critical barrier in wastewater treatment. Many plants face a choice. They can use traditional liquid chlorine, or they can switch to safer, on-site generation.

The SHT-3000G is a high-capacity sodium hypochlorite generator. It is designed specifically for large-scale municipal and industrial wastewater plants. It produces a high-purity disinfectant solution using only salt, water, and also electricity.

This system eliminates the need for hazardous chemical transport. It simplifies logistics. Most importantly, it ensures consistent compliance with environmental standards.

I. Technical Specifications and Core Functionality

SHT-3000G is a “heavy-duty” model. The “3000G” designation refers to its effective chlorine output.

The Electrolysis Process

The core of the system is the electrolytic cell. The process is elegant yet powerful. Firstly, common salt (NaCl) is dissolved to create a saturated brine. This brine is diluted and passed through the electrolyzer.

Low-voltage DC current is applied. This triggers a chemical reaction. The result is a sodium hypochlorite solution with a concentration of approximately 0.8% at the same time.

Why 0.8%?

Stability: At this concentration, the solution is highly stable.

Safety: It is non-combustible and non-explosive.

Minimal Byproducts: It reduces the formation of chlorates compared to high-concentration commercial bleach.

2. Sodium hypochlorite generator parameter

Product name	SHT-3000G
Effective chlorine yield	3000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	18KW
Salt consumption	3.2KG/KG ACC
Size	22009002000mm
Voltage	380V/50hz

II. Major Product Advantages

SHT-3000G stands out in a crowded market. Its advantages are rooted in engineering excellence and also operational efficiency.

1.Superior Electrolyzer Technology

The electrolyzer is the “heart” of the machine. We use pure titanium electrodes. These are coated with a proprietary Ruthenium-Iridium (Ru-Ir) oxide layer.

Longevity: The coating prevents corrosion.

Efficiency: It lowers the overpotential required for the reaction.

Energy Savings: The SHT-3000G consumes less than 4.0 kWh of electricity per kilogram of effective chlorine produced.

2. Fully Automated Intelligence

The SHT-3000G features a Siemens PLC control system. It is designed for “set it and forget it” operation.

Real-time Monitoring: The system tracks salt consumption, temperature, and also current.

Remote Access: Operators can monitor the system from a smartphone or central control room via Modbus or Ethernet.

Auto-Cleaning: The system includes an automated acid washing cycle to remove scale from electrodes, ensuring peak performance without manual labor at the same time.

3. Cost-Efficiency over Time

While the initial investment is higher than simple dosing pumps, the ROI is rapid.

Low Raw Material Cost: Salt is inexpensive and easy to source.

Reduced Labor: No more unloading heavy drums or managing complex chemical deliveries.

No Degradation: You only produce what you need. You never lose potency due to storage time.

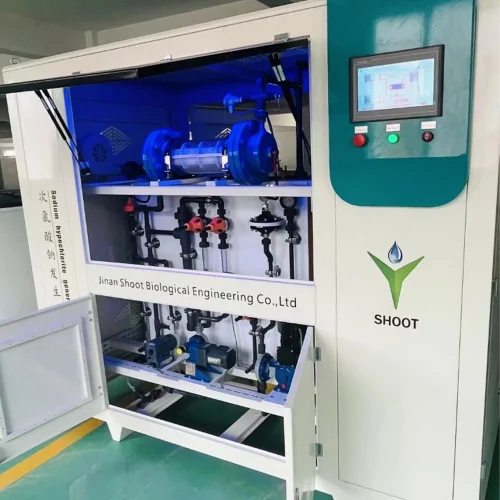

Sodium hypochlorite generator installation

III. Service Advantages: Our Commitment to You

Buying a disinfection system is a long-term partnership. We do not just ship a crate; we provide a total solution.

1. Bespoke System Design

No two wastewater plants are identical. Our engineers perform a site-specific analysis before installation. We customize the storage tank capacity, dosing pump flow rates, and also piping layouts to fit your existing footprint.

2. Lifecycle Maintenance Support

We offer a comprehensive “Cloud Service” platform. Our technical team receives alerts if your system fluctuates outside of normal parameters. Often, we can diagnose and fix issues remotely before your onsite staff even notices a problem.

5. A Trusted Partner in Over 30 Countries

Our global success is not an accident. It is the result of a relentless focus on quality, performance, and also customer support. The SHT-3000G has been successfully deploy in hospitals, water treatment plants, and industrial facilities across Asia, Africa, Europe, and also the Americas.

This international footprint demonstrates the system’s versatility and also its ability to meet diverse international standards. When you choose the SHT-3000G, you are choosing a technology that is tested, proven, and trusted by professionals around the world.

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.

Factory advantage

We have R&D centers, production centers, data centers and marketing centers. It is committe to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
