Pure water machine process flow chart:
Firstly,Automatic alarm for low pressure in front of the pump, not less than 0.05MPa;
four points of raw water pressure, pressure in front of the pump, high pressure,
and pure water pressure are monitoring simultaneously with real-time feedback;
transport pure water also can use a pure water pump; a special high-flow high-pressure pump
can effectively improve reverse osmosis, Improve the salt rejection rate ,
and also extend the service life; imported resin filling the ion column.

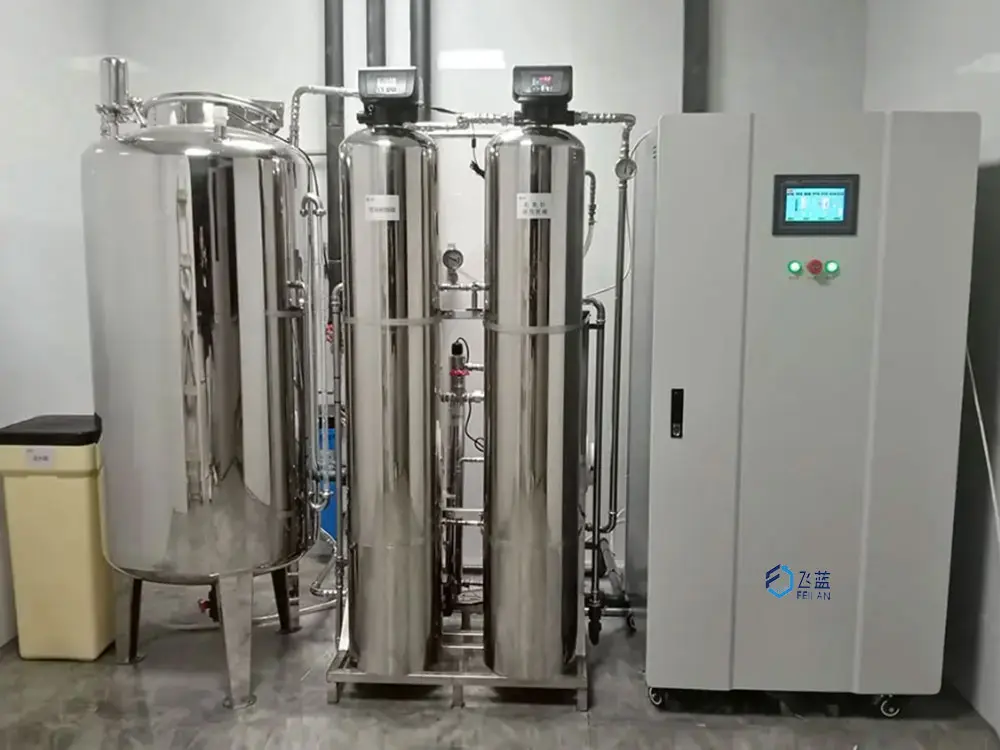

Central Water Supply System
| Product |
SHC-RO-DI-2000L
|
|---|---|
| Water Production | >2000L/H(25℃） |
| Water Supply Speed | >2000L/H |
| Water Production Computer Rate | 0.055-0.1us/cm(25℃) |
| Number Of Bacteria | <0.1CFU |
| Power | 4500W |
| Water Utilization Efficiency | >60% |
| Water Production Index | Ion interception rate>99%, organic matter interception rate (MW>200Dalton)>99%, bacteria and particle removal rate>99% |
| Operating Noise | <50±5dB |
Installation Conditions
1. Ambient temperature: 15-35℃, relative humidity ≤80%.
2. Installation site: The ground is flat and waterproof, with smooth drainage and floor drains.
3. Water source: municipal tap water.
During operation, the water pressure should be maintained at 0.1-0.4Mpa.
Then the water temperature should be 15-35°C, and should be install a 1/2″ (4 minutes) inner wire ball valve.
If the source water quality cannot meet the above standards, it will cause excessive burden on the water machine,
reduce the desalination rate of the reverse osmosis membrane, shorten the service life, and consume the downstream consumables too quickly.
When this problem occurs, we recommend to take corresponding measures ,and have the installation engineer propose a solution on site for user reference.
Our client
For factory water treatment are mainly use industrial pure water machines , and use in conjunction with our hypochlorous acid water generators to solve the problem of substandard environmental water quality at customer sites.
Currently it is mainly used in Italy, Mexico, South Africa, Belgium, Singapore and other countries.
Our factory and team
Firstly,Our factory covers an area of 50,000 square meters and establish for 45 years.On the one hand, it has exquisite manufacturing technology
meanwhile can produce 100 RO machines per day.
On the other hand, 200+ technical production personnel and operational sales personnel.
Our services and delivery status
We adhere to 7*24*365 service standards, now have about 20+ countries ,around the world use our equipment ,
and give high praise.
