Introduction
Municipal water treatment demands reliable disinfection. Our sodium hypochlorite (NaClO) generator also provides a safer, more efficient alternative to traditional chlorine gas or liquid bleach.
Firstly, it eliminates hazardous chemical storage. Meanwhile, it reduces transportation risks. Moreover, it ensures consistent chlorine production on-site.
Transitioning to electrolytic disinfection improves safety. Additionally, it lowers long-term costs. Furthermore, it supports sustainable water treatment practices.

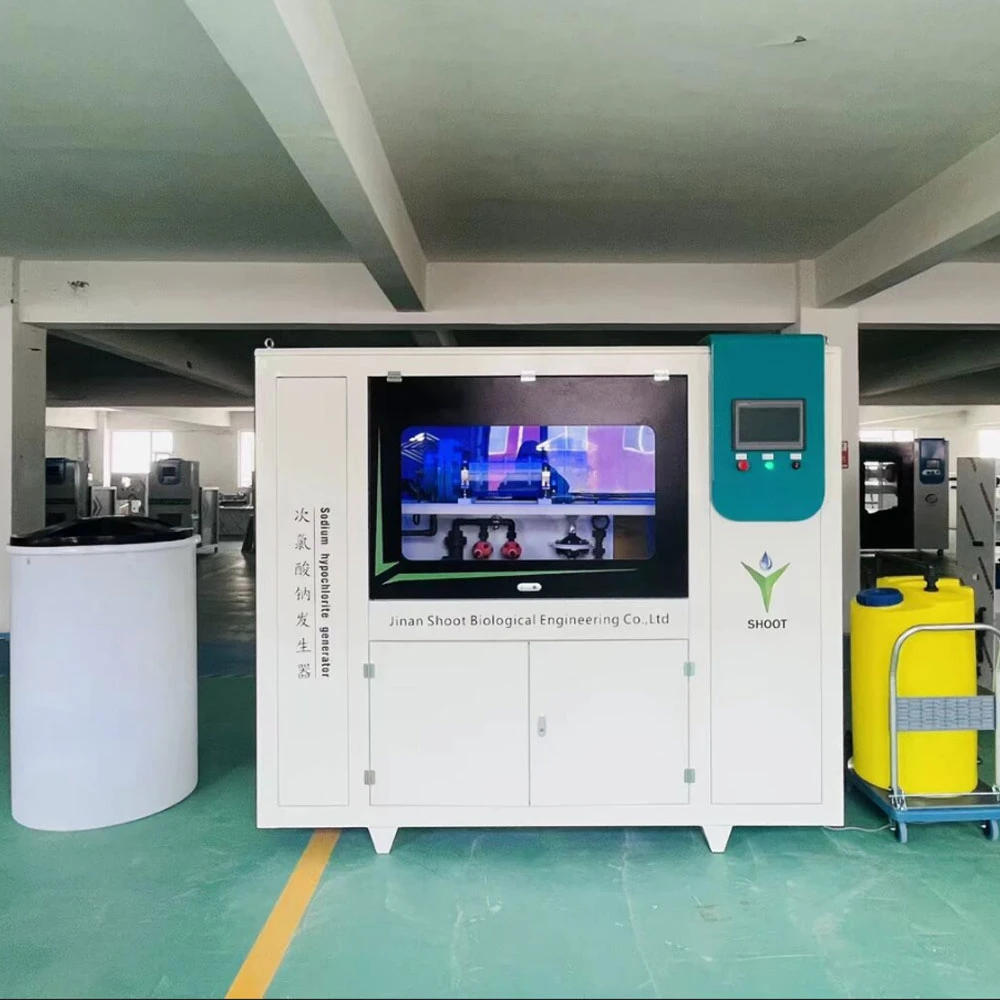

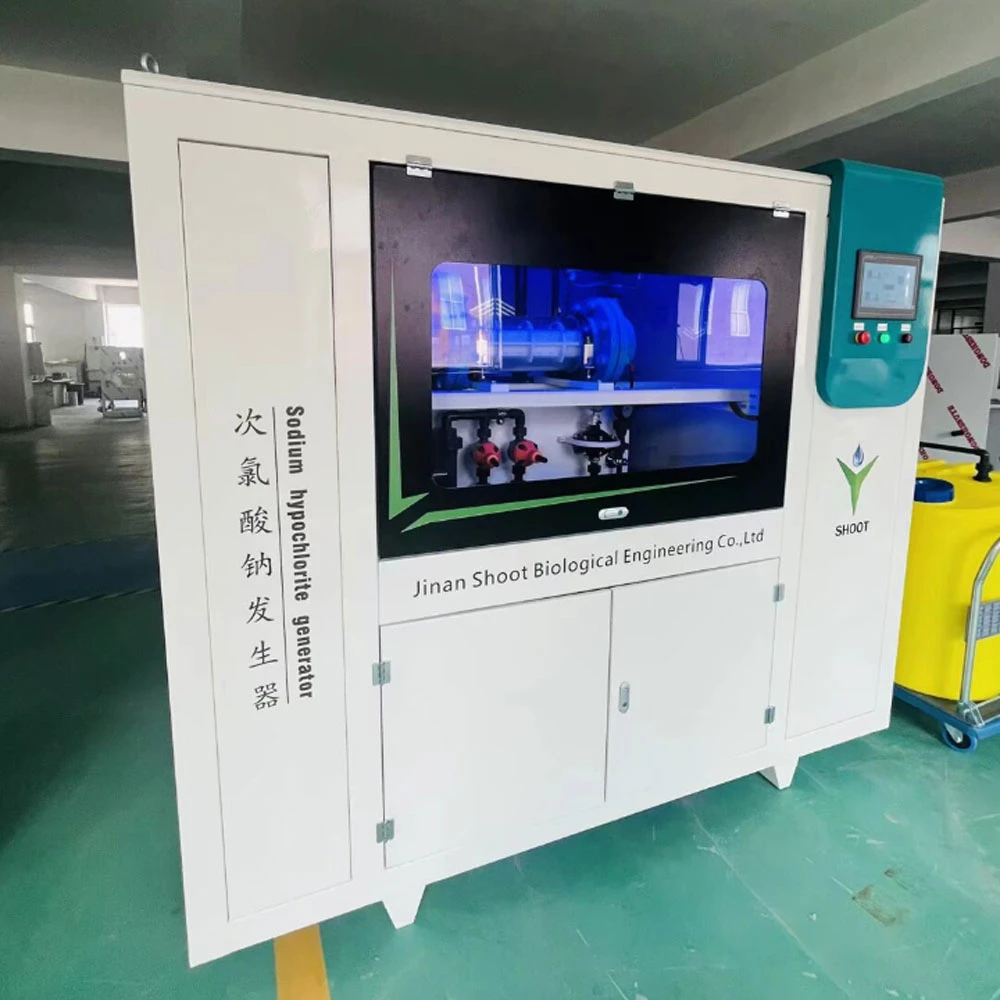

Sodium hypochlorite generator parameter
| Product name | SHT-500G |
|---|---|
| Effective chlorine yield | 500g/H |
| Concentration | 6-10g/L（6000-10000ppm） |
| Power | 6KW |
| Salt consumption | 3.2KG/KG |
| Size | 1600*800*2000mm |
| Voltage | 380V/50hz |
2. Why Choose On-Site Sodium Hypochlorite Generation?
2.1 Safety Advantages
No need for chlorine gas cylinders.
Eliminates risks of leaks and spills.
Meanwhile, reduces regulatory compliance burdens.
2.2 Cost Efficiency
Lower operational costs than delivered bleach.
Minimal maintenance requirements.
Long-lasting electrolyzer components.
2.3 Environmental Benefits
No plastic waste from bleach containers.
Reduced carbon footprint from transportation at the same time.
Sustainable salt-based chlorine production.

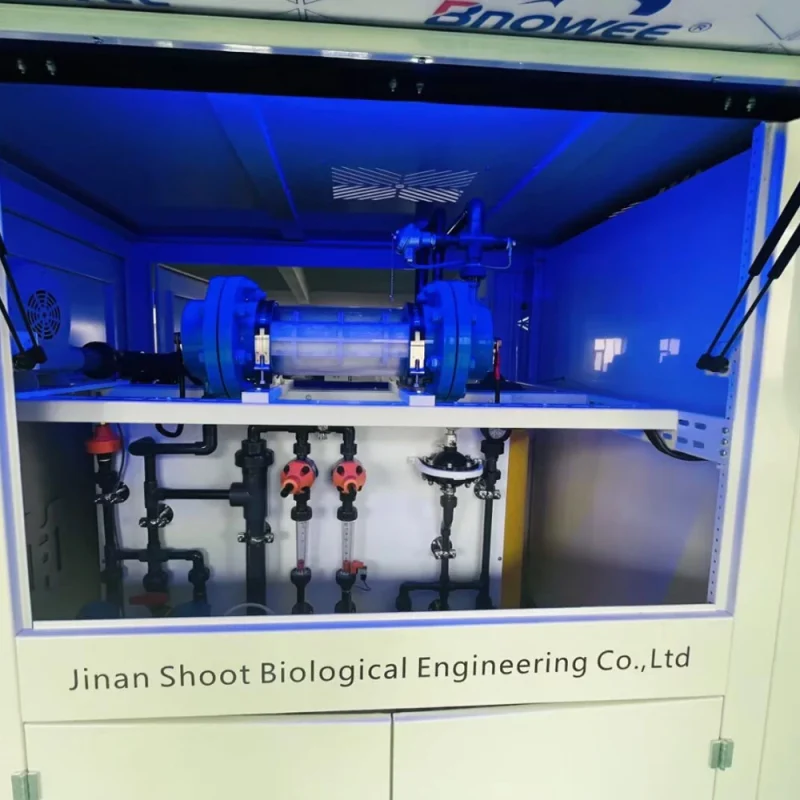

3. Core Technology: The Electrolysis Cell (Electrolyzer)
3.1 High-Performance Electrode Design
Premium titanium electrodes with mixed metal oxide (MMO) coating.
Corrosion-resistant for extended lifespan (5-7 years).
Optimized surface area for maximum chlorine output.
3.2 Efficient Brine Electrolysis
Softened brine solution ensures smooth operation.
Automatic salt saturation control for stable production.
Meanwhile, low power consumption (3.5-4.5 kWh per kg of chlorine).
3.3 Self-Cleaning & Anti-Scaling Features
Automatic polarity reversal prevents scaling.
Acid wash cycle reduces maintenance frequency.
Easy-access design for manual cleaning if needed.

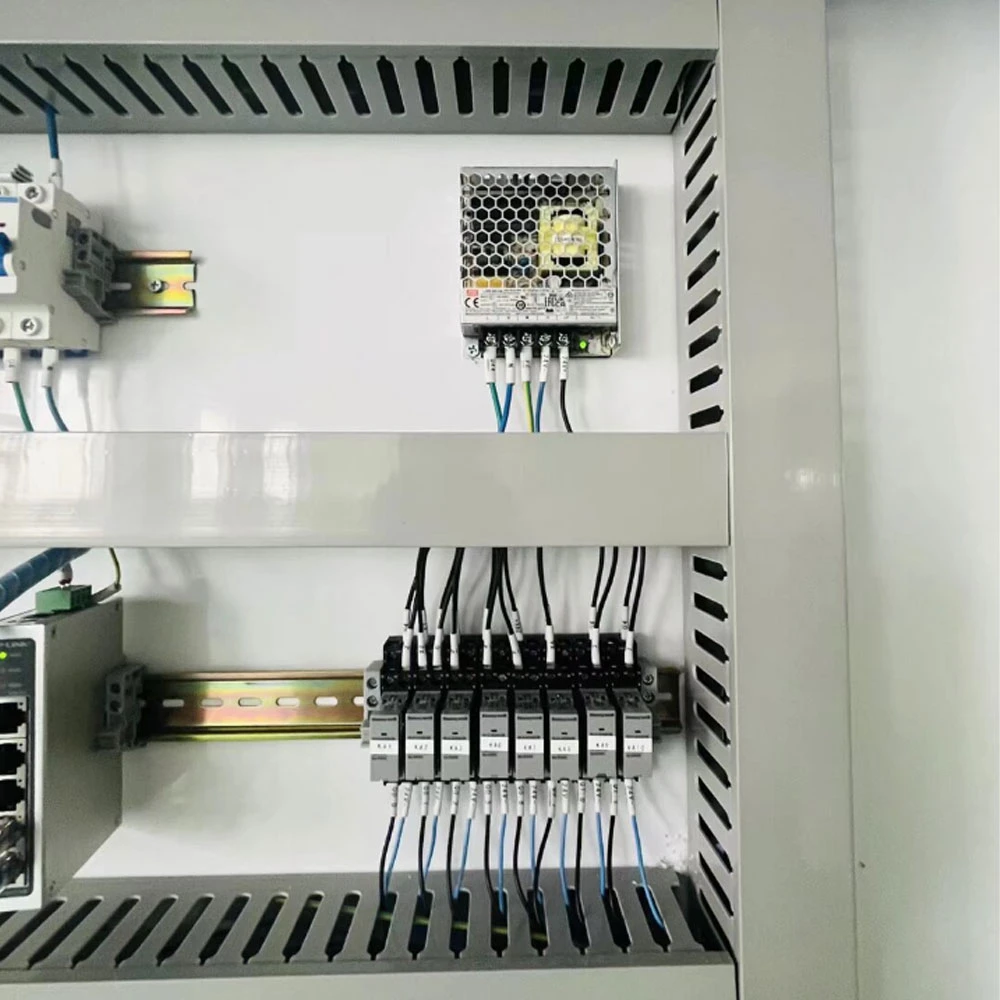

4. Smart Control & Monitoring System
4.1 User-Friendly Interface
Touchscreen HMI for real-time adjustments.
Multi-language support for global operators at the same time.
Data logging for compliance reporting at the same time.
4.2 Automated Safety Features
Low salt alarm prevents system damage.
Overcurrent protection safeguards electrodes.
Leak detection for added security at the same time.
4.3 Remote Monitoring & IoT Integration
Cloud-based tracking for performance analytics.
SMS/email alerts for critical issues.
Compatible with SCADA systems for plant integration.
5. After-Sales Support & Warranty
5.1 Comprehensive Warranty Coverage
2-year full warranty on electrolyzer and also control system.
5-year electrode lifespan guarantee (with proper maintenance).
5.2 Global Technical Support
24/7 helpline for urgent issues.
On-site service engineers in major regions at the same time.
Online troubleshooting portal with video guides at the same time.
5.3 Spare Parts Availability
Fast shipping for critical components.
Lifetime support for discontinued models.
FAQ
Q1: How does the generator compare to liquid bleach?
A: It’s safer, cheaper long-term, and eliminates storage risks.
Q2: What salt quality is required?
A: High-purity (>99%) industrial salt without iodine.
Q3: How often must the electrolyzer be cleaned?
A: Every 1-3 months, depending on water hardness.
Factory advantage
We have R&D centers, production centers, data centers and marketing centers. It is committe to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
