Sodium Hypochlorite Generator for Water Treatment Plants -

Clean, safe drinking water is essential. Municipal water plants need reliable disinfection solutions. Sodium hypochlorite (NaOCl) generators also offer an efficient, cost-effective solution. They produce chlorine on-site, ensuring consistent water quality.

Small-scale sodium hypochlorite generators are also perfect for water treatment and rechlorination. They eliminate the risks of transporting and storing liquid chlorine. Let’s explore how these systems work and why they benefit water plants.

1. How It Works

The system generates sodium hypochlorite through electrolysis. Here’s a simple breakdown:

Salt Solution Preparation – Dissolve high-purity salt in water to create brine.

Electrolysis Process – Meanwhile, the brine passes through an electrolytic cell. An electric current splits the salt (NaCl) and water (H₂O) into sodium hypochlorite (NaOCl) and hydrogen gas (H₂).

Dosing & Disinfection – The generated NaOCl solution is also dosed into the water supply. It kills bacteria, viruses, and other pathogens effectively.

This process is safe, automated, and requires minimal manual intervention.

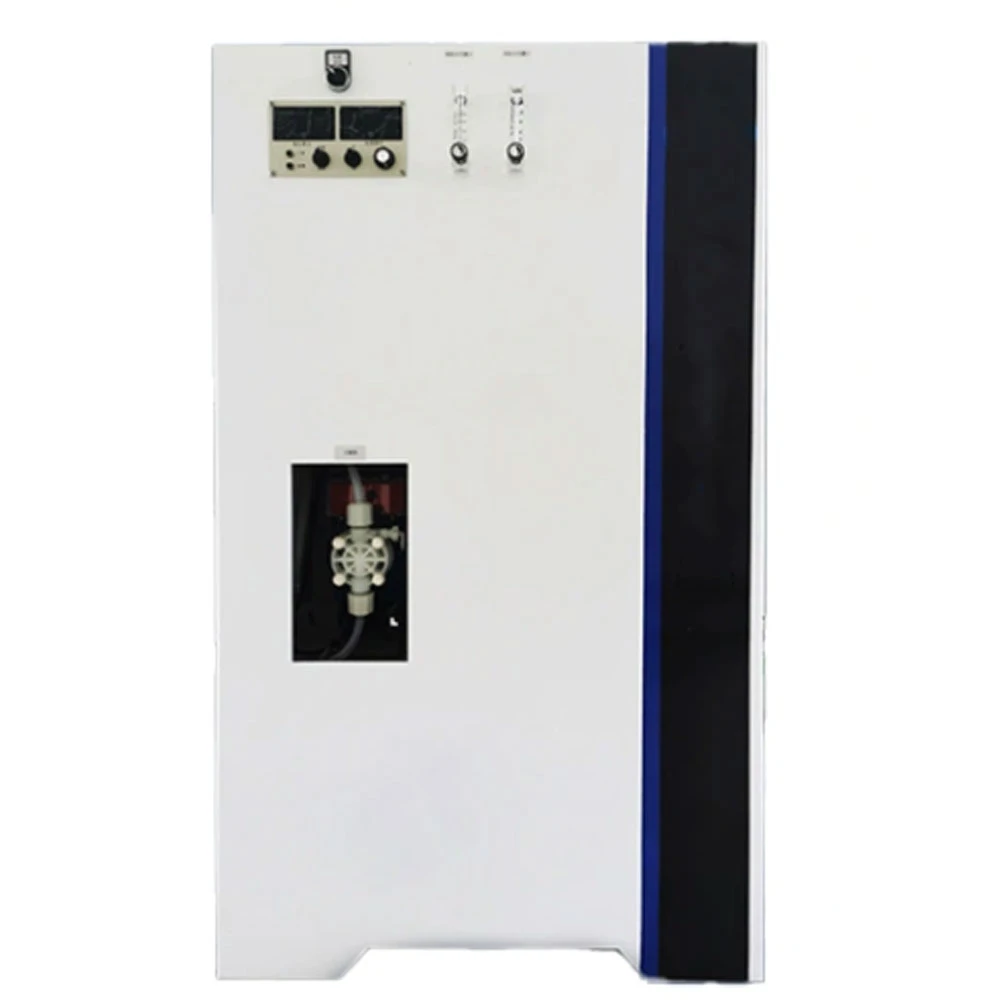

2. Sodium hypochlorite generator parameter

Product name	SHT-1000G
Effective chlorine yield	1000g/H
Concentration	6-10g/L（6000-10000ppm）
Power	60KW
Salt consumption	3.2KG/KG
Size	16008002000mm
Voltage	380V/50Hz

3. Key Benefits

1. Enhanced Safety

No need to handle hazardous chlorine gas or liquid.

Eliminates risks of leaks, spills, and transportation accidents.

Hydrogen gas (a byproduct) is safely vented or diluted.

2. Cost-Effective Operation

Uses only salt, water, and electricity—readily available and also affordable.

Reduces chemical storage and transportation costs.

Low maintenance with long-lasting electrodes.

3. Reliable Performance

Produces consistent chlorine levels for effective disinfection.

Adjustable output to match demand (seasonal variations, flow changes).

Automated controls ensure precise dosing.

4. Environmentally Friendly

On-site generation also reduces carbon footprint from chemical transport.

No harmful byproducts—only salt, water, and minimal hydrogen gas.

Supports sustainable water treatment practices.

5. Compact & Scalable Design

Ideal for small to medium water treatment plants.

Can be integrated into existing systems easily.

Modular units allow expansion as demand grows.

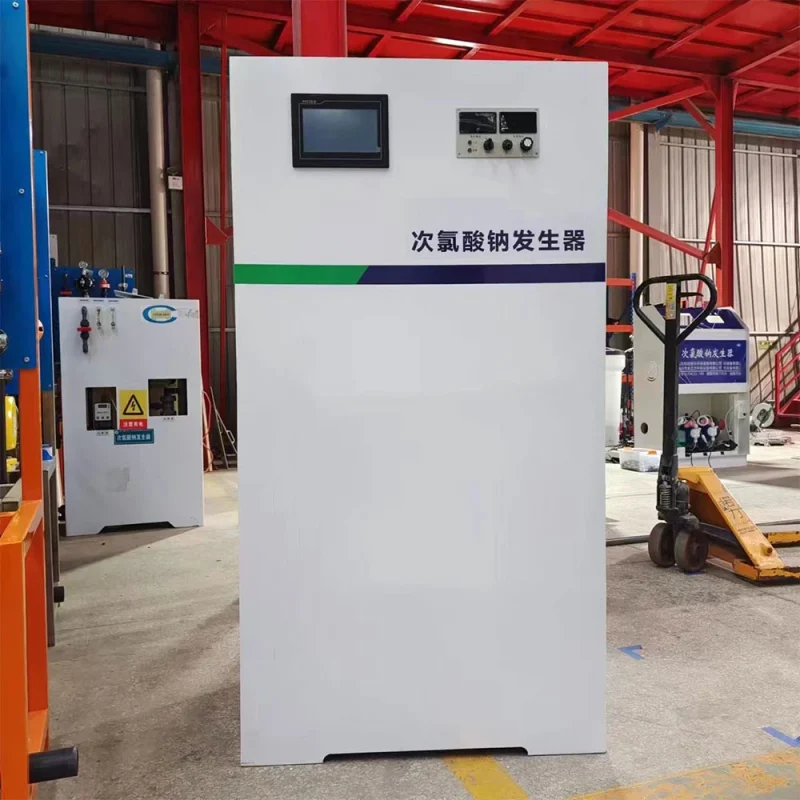

The site of sodium hypochlorite generator

4. Applications in Water Treatment

1. Primary Disinfection

Effectively kills bacteria, viruses, and algae.

Works in clear and turbid water conditions.

2. Rechlorination (Booster Disinfection)

Maintains residual chlorine levels in distribution networks.

Prevents microbial regrowth in pipelines.

3. Emergency Water Treatment

Rapid deployment during contamination events.

Useful in disaster relief and temporary water supply setups.

5. Why Choose Our Sodium Hypochlorite Generator?

Advanced Technology

High-efficiency electrolytic cells for maximum NaOCl production.

Corrosion-resistant materials also ensure durability.

User-Friendly Controls

Automated operation with real-time monitoring.

Remote access for adjustments and also troubleshooting.

Low Maintenance

Self-cleaning systems reduce scaling and deposits.

Easy electrode replacement when needed.

Compliance & Certification

Meets international water safety standards (ISOCE.).

Certified for reliability and performance.

FAQ

1. What is a sodium hypochlorite generator, and how does it work?

A sodium hypochlorite generator is also a device that produces sodium hypochlorite (NaClO), a common disinfectant, on-site through an electrolysis process. Therefore, it uses a brine solution (sodium chloride, NaCl) as the raw material. When an electric current passes through the brine, it breaks down the sodium chloride and water (H₂O) molecules, generating sodium hypochlorite, hydrogen gas, and heat. The resulting sodium hypochlorite solution can then be used for disinfection purposes in various applications, such as water treatment, swimming pools, and wastewater management.

2. What are the advantages of using an on-site sodium hypochlorite generator?

On-site generators offer several benefits. Firstly, they eliminate the need for transporting and storing hazardous pre-made sodium hypochlorite solutions, reducing safety risks and storage costs. Secondly, the generated sodium hypochlorite is fresh, ensuring consistent disinfection efficacy, as pre-made solutions can degrade over time. Additionally, on-site generation provides flexibility, allowing users to produce the required amount of disinfectant as needed, which is cost-effective for facilities with variable disinfection demands.

3. How often should I maintain my sodium hypochlorite generator?

Regular maintenance is crucial for optimal performance. Typically, it’s also recommended to clean the electrolytic cells every 3 – 6 months to remove scale and mineral deposits that can reduce efficiency. Meanwhile, monitor the salt concentration in the brine tank regularly and refill it as needed. Also, check electrical connections, pumps, and valves periodically for any signs of wear or leaks. Annual professional servicing can help identify and address potential issues before they escalate.

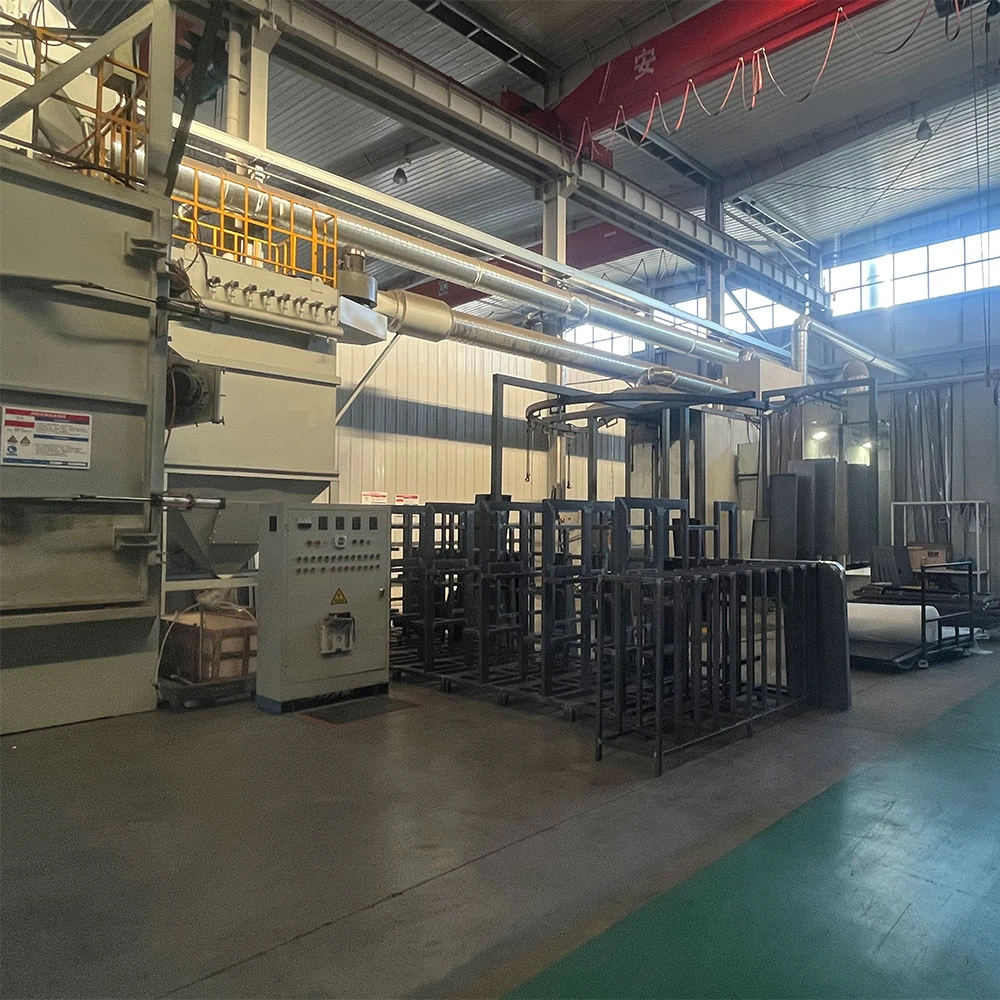

Factory advantage

We also have R&D centers, production centers, data centers and marketing centers. It is committe to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company also has a perfect product sales and service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
