Clean Water, Smarter Solution: SHT-10000G Sodium Hypochlorite Generator

Model: SHT-10000G

Effective Chlorine Capacity: 10000 g/h (10 kg/h)

Solution Concentration: 0.8% (Stable and safe)

Application: It integrates high efficiency, safety, energy saving, environmental protection, and low cost. OEM and ODM services available; on-site installation possible.（CE\ISO）

Send Inquiry

Description

Safe drinking water is the backbone of any thriving community. Therefore, municipal water plants require disinfection systems that are both highly effective and exceptionally safe. Traditional chlorine gas presents massive safety risks, while commercial liquid bleach degrades quickly.

The SHT-10000G Sodium Hypochlorite Generator solves these problems completely. This industrial-grade system produces high-purity sodium hypochlorite directly on-site using only water, salt, and also electricity.

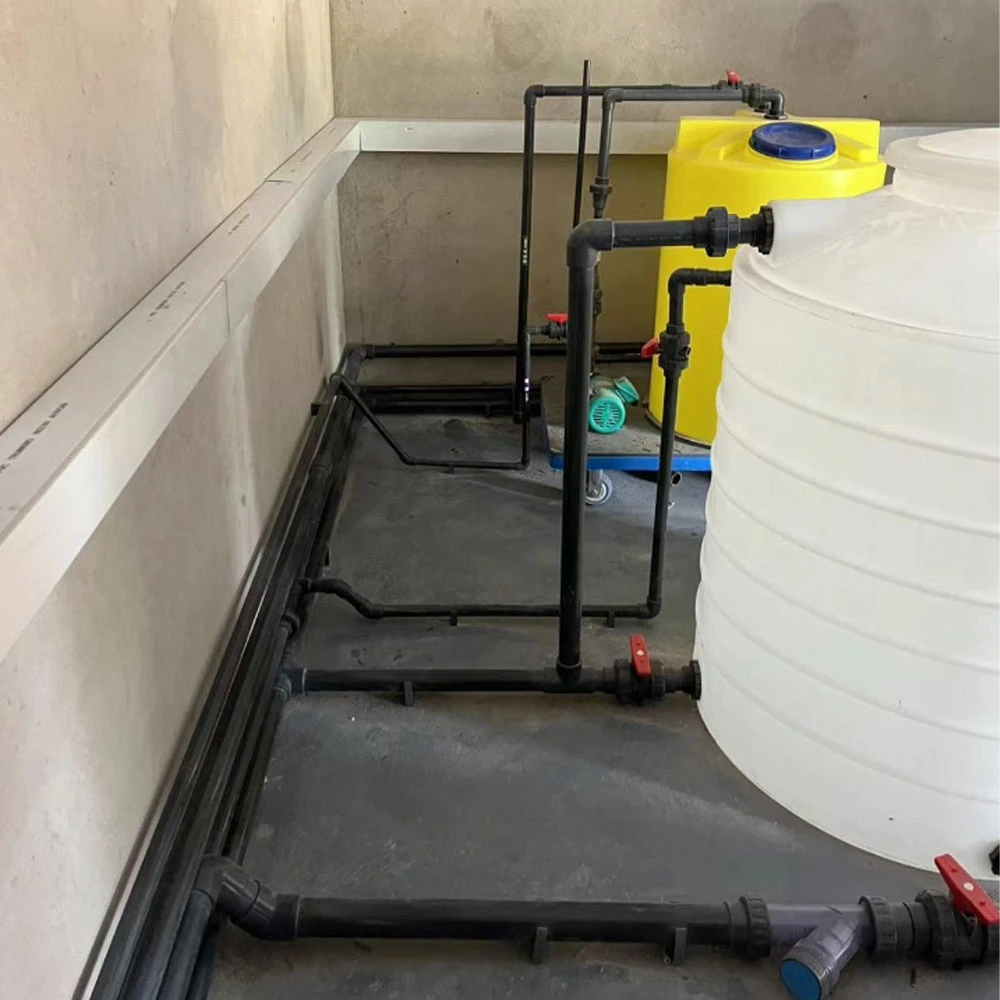

Sodium hypochlorite generator installation

Why Choose On-Site Generation?

Many water plants still rely on hazardous chemicals. However, moving to on-site generation transforms your entire operation.

Eliminate Transport Risks: You no longer need to transport or store dangerous chlorine gas.

Fresh Chemical Every Time: Commercial bleach loses its strength during storage. In contrast, the SHT-10000G produces a fresh, stable solution exactly when you need it.

Lower Operating Costs: Raw salt is inexpensive and easy to source. Consequently, your long-term operational expenses will drop significantly.

Sodium hypochlorite generator parameter

Product name	SHT-10000G
Effective chlorine yield	10000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	60KW
Salt consumption	3.2KG/KG ACC
Size	220015002000mm
Voltage	380V/50hz

Core Product Advantages

1. Advanced Electrolytic Technology

First and foremost, the SHT-10000G features top-tier titanium electrodes with a specialized ruthenium-iridium oxide coating. This advanced coating maximizes electrolysis efficiency. As a result, the system consumes less electricity and salt while maintaining a massive output of 10 kg/h of active chlorine.

2. Intelligent, Automation-Ready Control

Manpower is valuable, so we designed the SHT-10000G for fully autonomous operation. The integrated Siemens PLC system monitors every critical metric in real-time. It tracks water flow, salt concentration, temperature, and current. Furthermore, the system connects seamlessly to your central municipal SCADA control room. Operators can monitor and control the entire disinfection process remotely.

3. Comprehensive Safety Features

Safety is our absolute priority. Therefore, the SHT-10000G includes a multi-layered safety network.

Hydrogen Ventilation: The electrolysis process creates a small amount of hydrogen byproduct. To handle this, our system utilizes a heavy-duty, redundant blower system to dilute and also vent hydrogen safely into the atmosphere.

Automatic Shutdown: If the system detects a loss of water flow or an abnormal temperature spike, it shuts down instantly to prevent damage.

4. Low Salt and Energy Consumption

Efficiency translates directly into cost savings. Because of our optimized chamber design, the SHT-10000G requires less salt and power per kilogram of chlorine than industry standards. You will notice a visible reduction in your monthly utility and also raw material bills.

Our Unmatched Service Advantages

1. Lifetime Technical Support

Our relationship does not end after the sale. We provide lifetime technical consultations for the SHT-10000G. If your operators have questions about chemical dosing or system calibration years down the road, our engineers are always available to help.

2. Rapid-Response Spare Parts

We maintain a fully stocked warehouse of genuine replacement parts, including seals, sensors, and backup control modules. Consequently, we can ship critical components immediately, minimizing your plant’s operational risks.

3. On-Site Training Programs

During system hand-off, our team conducts thorough training sessions for your plant operators. We cover routine maintenance, safety protocols, and also troubleshooting. Therefore, your team will feel completely confident running the system from day one.

Final Safety Certification

Finally, we run a comprehensive safety audit on the hydrogen venting system and emergency shut-offs. We only leave the site after the system achieves peak, stable performance.

How It Works: Step-by-Step

The SHT-10000G simplifies a complex chemical process into four automated steps:

Water Softening: The system softens incoming water to prevent scale buildup inside the electrolytic cell.

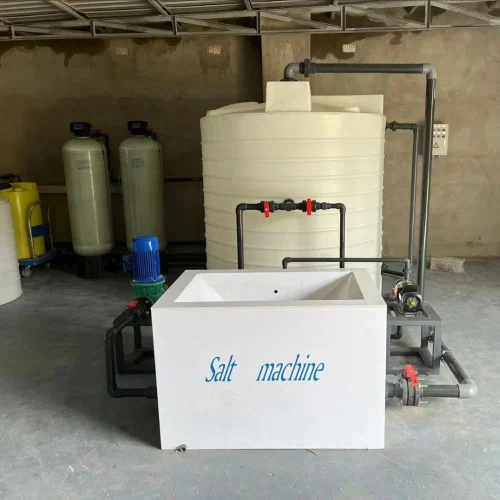

Brine Preparation: The saturator automatically mixes the softened water with industrial salt to create a precise 3％ brine solution.

Electrolysis: The brine passes through the titanium electrolyzer. The electric current transforms the salt water into a 0.8% sodium hypochlorite solution.

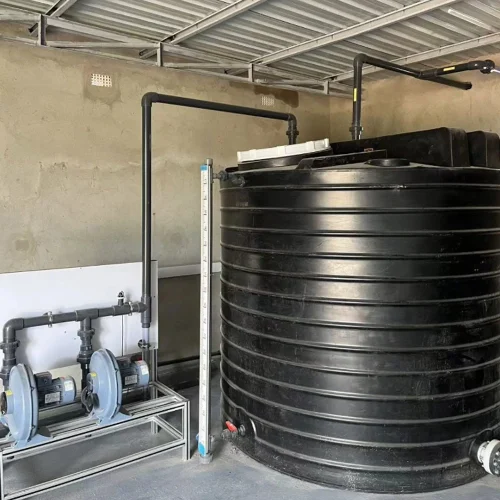

Dosing: The system stores the safe liquid solution in a storage tank, ready for automatic injection into your water supply.

Sodium hypochlorite generator catalog

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
