The overall process of the pure water machine consists of four parts: the first part is the pre-treatment system, the second part is the reverse osmosis system, the third part is the water balance system, and the fourth part is the electronic control system. The entire system is controlled by PLC and runs fully automatically without manual intervention. When the equipment has problems such as low water pressure or water leakage, it will send an alarm and shut down automatically for automatic protection when necessary. Various possible faults are visually displayed, sound and light alarms are issued, and self-protective shutdown is performed when necessary. The human-machine interface can dynamically display the overall operating status, pressure, pure water flow, wastewater flow, raw water conductivity, RO conductivity, water temperature, high pressure and other parameters (optional).

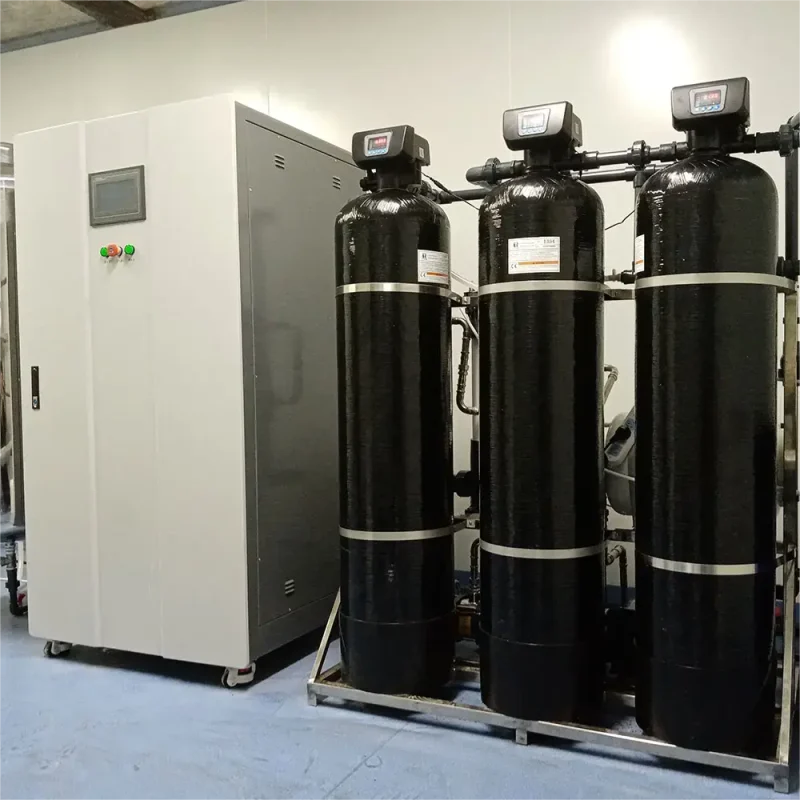

Pure Water Machine System
| Product |
Pure water machine system
|
|---|---|
| Water Production | >500L/H(25℃） |
| Water Supply Speed | >800L/H |
| Water Production Computer Rate | 0.055-0.1us/cm(25℃) |
| Number Of Bacteria | <0.1CFU |
| Power | 800W |
| Water Utilization Efficiency | >60% |
| Water Production Index | Ion interception rate>99%, organic matter interception rate (MW>200Dalton)>99%, bacteria and particle removal rate>99% |
| Operating Noise | <50±5dB |
Installation Conditions
1. Ambient temperature: 15-35℃, relative humidity ≤80%.
2. Installation site: The ground is flat and waterproof, with smooth drainage and floor drains.
3. Water source: municipal tap water.
During operation, the water pressure should be maintained at 0.1-0.4Mpa, the water temperature should be 15-35°C, and a 1/2″ (4 minutes) inner wire ball valve should be installed.
If the source water quality cannot meet the above standards, it will cause excessive burden on the water machine, reduce the desalination rate of the reverse osmosis membrane, shorten the service life, and consume the downstream consumables too quickly. When this problem occurs, it is recommended to take corresponding measures and have the installation engineer propose a solution on site for user reference.
Our client
Industrial pure water machines are mainly used for factory water treatment and are used in conjunction with our hypochlorous acid water generators to solve the problem of substandard environmental water quality at customer sites. Currently it is mainly used in Italy, Mexico, South Africa, Belgium, Singapore and other countries.
Our factory and team
Firstly,Our factory covers an area of 50,000 square meters and establish for 45 years.On the one hand, it has exquisite manufacturing technology
meanwhile can produce 100 RO machines per day. On the other hand, 200+ technical production personnel and operational sales personnel.
Our services and delivery status
We adhere to 7*24*365 service standards, and our equipment has been used in 20+ countries around the world and has received high praise.
