Key specifications
| Parameter Items | detail specifications |
|---|---|
| unit type | SHT-SAEW-6000 |
| Output flow rate | 6T/H（supports customizable flow rates） |
| Effective chlorine concentration | 100 PPM–150 PPM, adjustable |
| Raw materials | NaClO + HCl/Citric acid |
| pH value of the hypochlorous acid effluent | 5.0-6.5 |
| Electrolytic Cell Warranty | 30,000 hours |
| Service voltage | 200-240V/50-60Hz |
| Effective proportion of hypochlorous acid | ＞98.50% |
| Filtration system (optional) | RO system or water softening system |
| Total weight | 95kg-210kg |
| Equipment dimensions | 520*620*1450mm |
Our Advantages
High‑Volume Continuous Output for Large‑Scale Farming
Built for non‑stop sanitisation across big farms. Specifically, with maximum throughput of 6 tons per hour, the unit reliably feeds drip‑irrigation networks, livestock housing spray lines and packing‑house washing systems without downtime.
Significant Operational Cost Savings
Purchasing ready‑to‑use commercial disinfectants creates recurring high expenditure. In comparison, our compounding system runs on affordable bulk‑form raw chemicals at the same time. Moreover, field‑proven operational data shows production cost for one tonne of 100 ppm HOCl solution falls between $5.3‑$6.8, substantially cutting long‑term farm sanitisation expenses.
Siemens PLC & IoT‑Powered Smart Automation

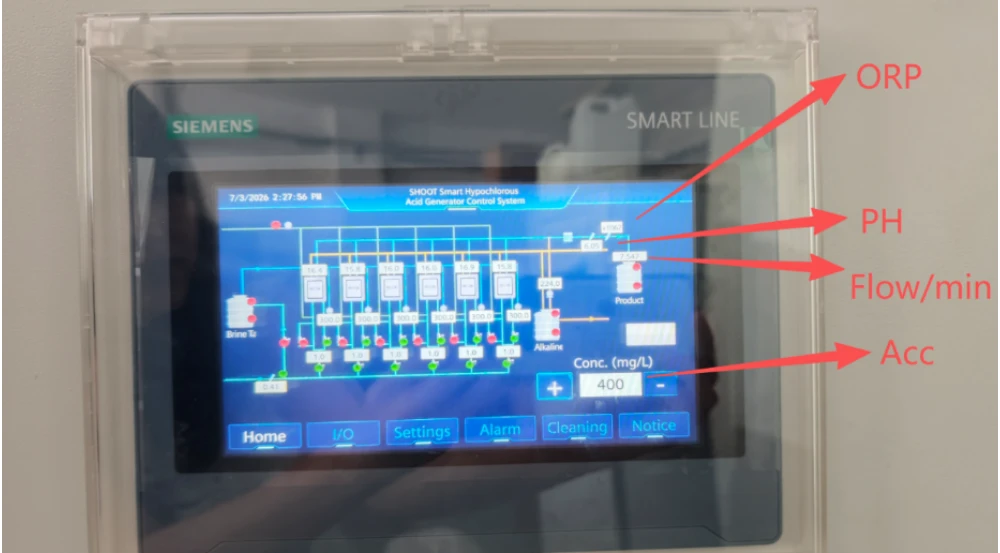

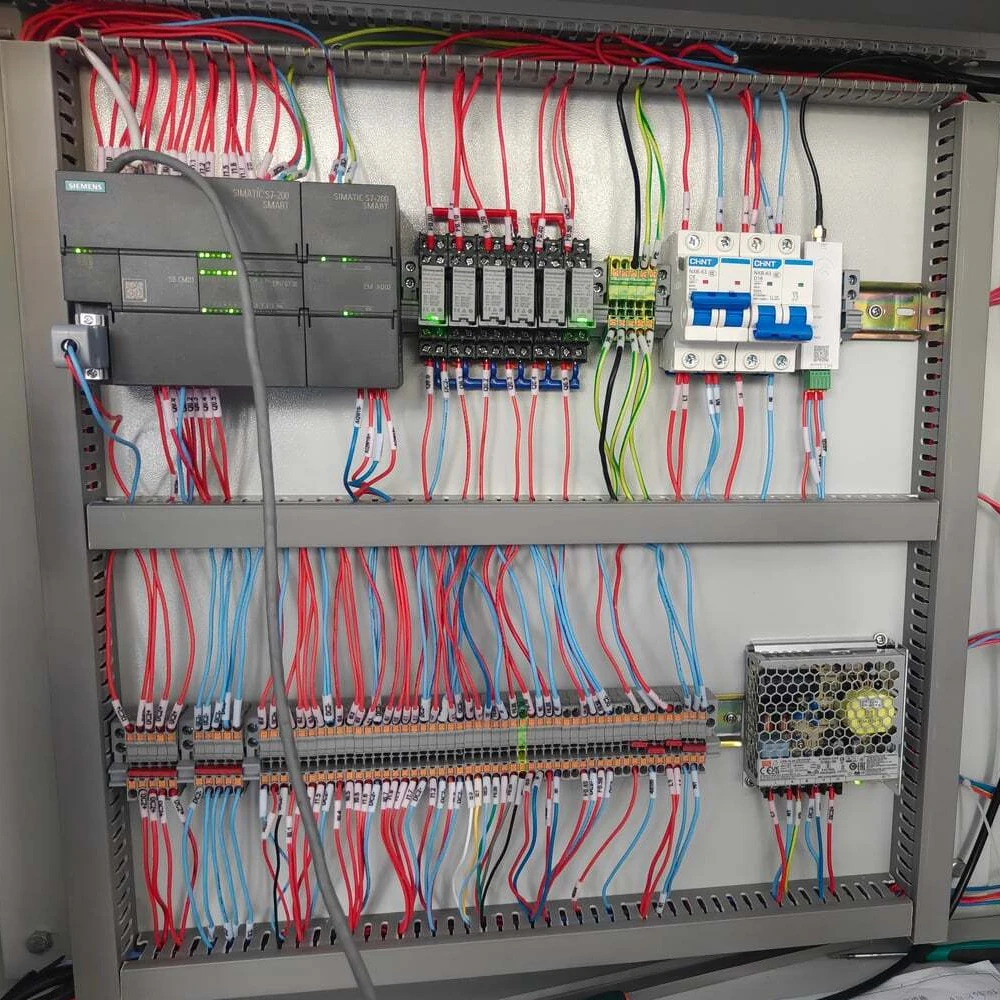

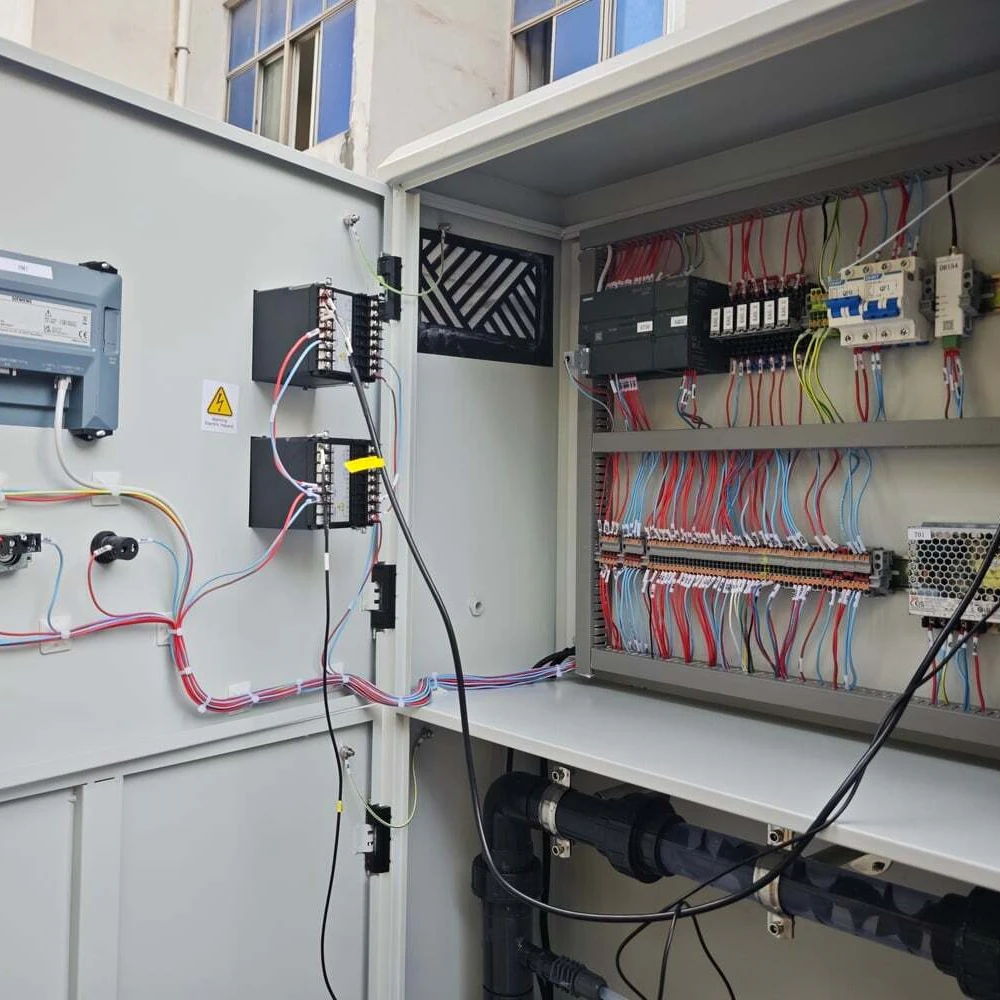

Complex industrial operation simplified. To begin with, the generator is equipped with Siemens PLC control plus 10‑inch HMI touchscreen, so it supports fully automatic running. In addition, integrated IoT remote access allows farm managers to monitor real‑time working parameters, receive leakage alarms and track system performance off‑site.
Heavy‑Duty Corrosion‑Resistant Fluid Components

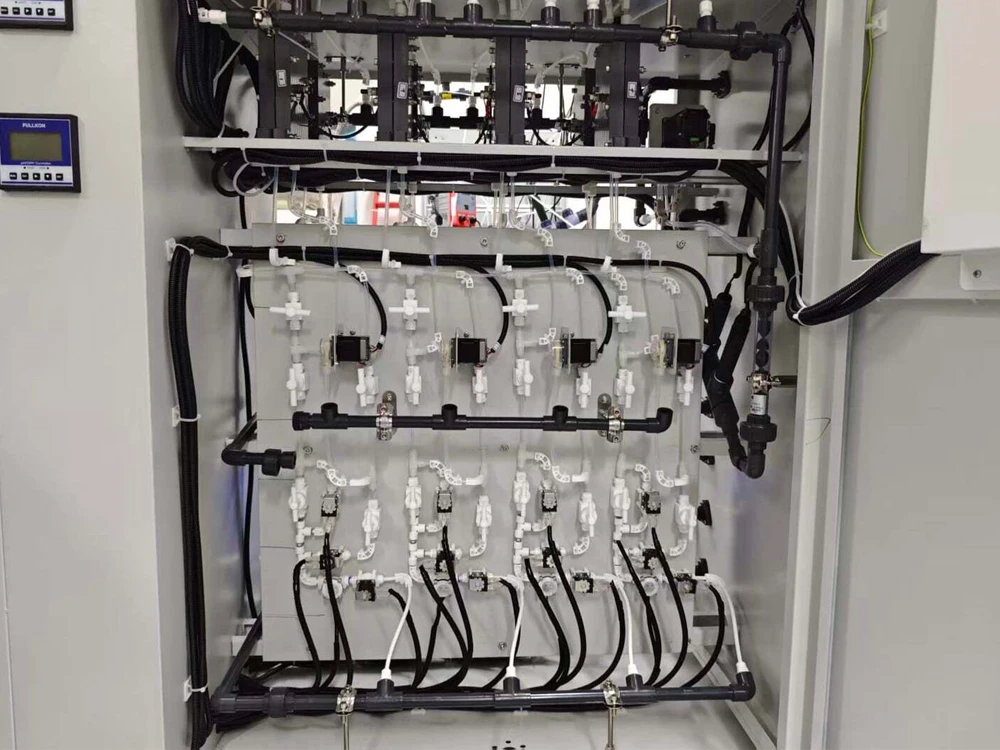

Farm environments impose heavy wear on process equipment. For this reason, this system adopts industrial‑grade acid‑resistant Lead Fluid peristaltic dosing pumps. Meanwhile, all fluid‑contact joints employ premium Teflon tubing and heavy‑duty fittings to resist chemical corrosion and extend service life.
Application Cases
Drip Irrigation Pipeline Maintenance
To start with, continuous flushing and disinfection removes biofilm inside irrigation lines at the same time. As a result, it prevents dripper clogging and suppresses soil‑borne root pathogens.
Livestock & Poultry Biosecurity
First of all, it can supply stable sanitising solution for barn spraying and also livestock drinking‑water disinfection. In turn, it reduces odour and also microbial loads, supporting antibiotic‑free animal husbandry.
Post‑Harvest Produce Washing
For one thing, it provides safe hypochlorous acid wash solution for freshly‑harvested fruits and vegetables. Therefore, it slows spoilage and extends shelf‑life in storage and transit.
Greenhouse & Facility Sanitisation
In particular, it enables quick sanitisation for seed trays, growing beds and processing tools at the same time. Meanwhile, it leaves no harmful chemical residues behind.
The moment of shipment
As a professional manufacturer, we have over 20‑years of ECA anolyte generator manufacturing experience at the same time. Currently, products are exported to 37 countries, serving thousands of industrial customers at the same time. In particular, we hold complete international certifications. What’s more, we have delivered multiple large‑scale industrial disinfection projects based on hybrid hypochlorous acid generator solutions.
