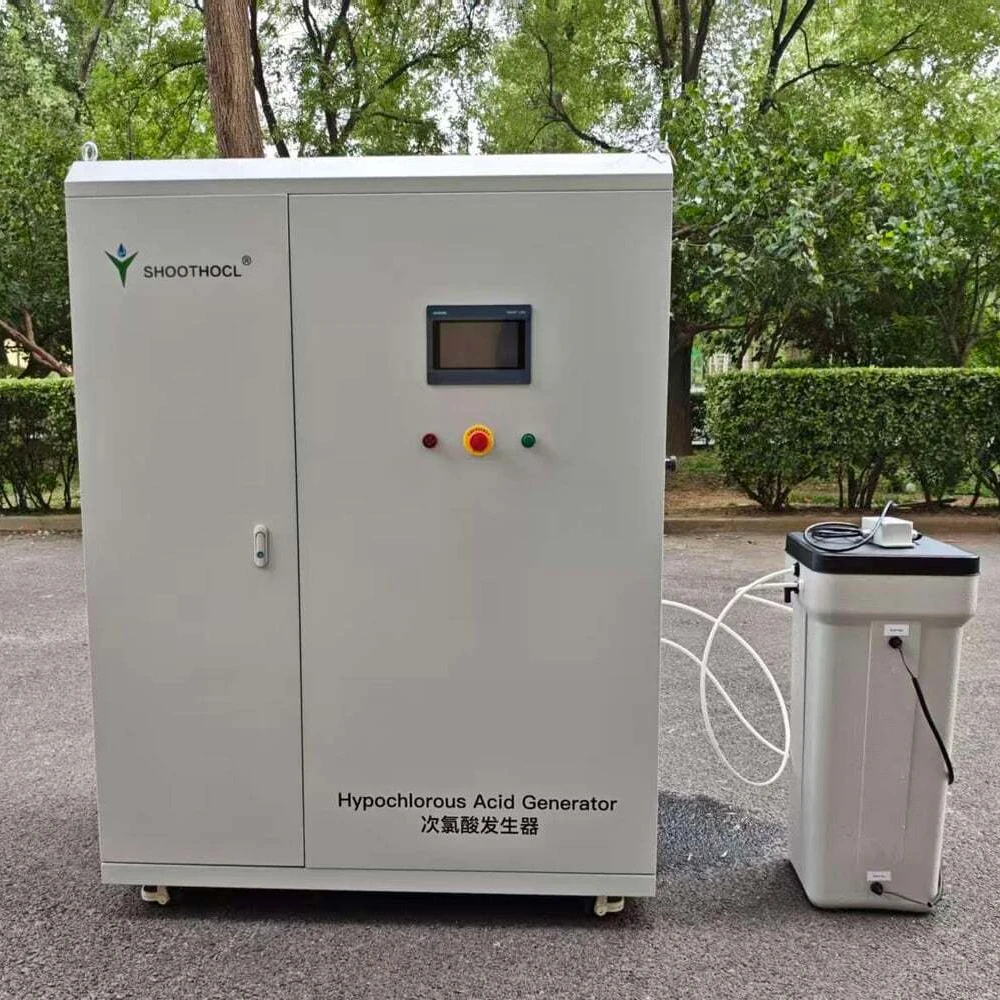

Hypochlorous Acid Generator for Agriculture

Using only water and salt, this on‑site electrolysis unit generates hypochlorous acid (HOCl). Widely applied in greenhouses, field farming, hydroponics, seed soaking, irrigation pipeline sanitization, foliar disease prevention, post‑harvest fruit & vegetable preservation, and livestock housing disinfection. It delivers broad‑spectrum bactericidal performance with zero chemical residues, ideal for green and organic agriculture.

Concentration: 10‑500 ppm (adjustable)
pH value: 5.0‑6.5 (adjustable)
Customizable models; OEM and ODM services available.

Send Inquiry

Description

Based on feedback from our extensive client base across 37 countries, agricultural growers and farms sourcing hypochlorous acid (HOCl) generators should focus on these key indicators: high HOCl purity, stable long‑run equipment performance, low residual salinity, and real‑time monitoring of critical working parameters. If you have inquiries about these points, please contact us at the same time.

Here is how the SHOOTHOCL agriculture‑specialized model addresses these farming‑oriented requirements:

First and foremost, the SHOOTHOCL generator achieves a HOCl purity ratio (HOCl/Acc) higher than 98.5%, nearly reaching 100% at pH 5.5. As a result, its high‑purity output effectively prevents salt‑related damage to crops and root systems, which is critical for long‑term planting safety.

Furthermore, the equipment supports stable 24‑hour continuous operation. In addition, it comes with IoT integration for full‑process traceability and real‑time alarm notifications, as can be seen from the device interface display.

Apart from the above performance merits, it adopts a patented electrolytic cell flow‑path design together with world‑leading sulfonic acid membrane technology to generate high‑purity HOCl. According to extensive experimental data, the output not only satisfies agricultural application criteria but also attains food‑grade as well as medical‑grade quality, meanwhile keeping salinity levels approaching zero.

Last but not least, the SHOOTHOCL generator is equipped with a Siemens PLC control system. Thanks to this configuration, it is capable of intelligently visualizing and displaying detailed operational parameters for convenient on‑site monitoring by farm operators.

Core Equipment Parameters

Parameter Items	detail specifications
unit type	SHT-SAEW-50、100、200、500
Output flow rate	50L/H–2000L/H, supports customizable flow rates
Effective chlorine concentration	10 PPM–500 PPM, adjustable
Electrolysis raw materials	NaCl（Salt）/HCl
pH value of the hypochlorous acid effluent	5.0-6.5
pH value of the sodium hydroxide effluent	10.0-13.5
service voltage	200-240V/50-60Hz
Effective proportion of hypochlorous acid	＞98.50%
Filtration system (optional)	RO system or water softening system
Total weight	95kg-210kg
Equipment dimensions	5206201450mm

Delivery and Service

Production Lead Time: 15 working days
Delivery Standard: Export-grade fumigation-free wooden crate packaging at the same time
Service: Includes machine inspection video, user manual, installation video, installation manual, and also maintenance manual, factory inspection report, list of auxiliary materials, etc.
>Warranty: One-year warranty for the complete machine;and also 30,000-hour warranty for the electrolysis cell.

Application Cases

To begin with, Irrigation Water Treatment: The SHOOTHOCL generator treats raw water for drip and sprinkler irrigation. More specifically, it removes stubborn pipeline biofilms, inhibits hazardous water‑borne pathogens, and also thereby it effectively reduces the occurrence of soil‑borne root diseases.

In the next place, Seedling & Seed Treatment: The unit conducts seed soaking, and it also disinfects seedling trays as well as growing beds. By doing so, it boosts seed germination rates and meanwhile it minimizes the risk of seedling disease infection.

Moving on to crop protection scenarios, Foliar Spraying: When farmers apply its output solution onto crop foliage, the generator‑produced HOCl suppresses both fungal and bacterial diseases. What is more, it cuts down chemical pesticide inputs, and it guarantees zero pesticide residues on harvested crops.

Subsequently, Post‑harvest Preservation: The generator supplies qualified HOCl solution for washing and soaking freshly‑harvested fruits and vegetables. In turn, it slows down spoilage development and consequently it extends the products’ shelf‑life.

Last but not least, Livestock & Poultry Disinfection: The generator delivers disinfectant solution for animal‑housing spraying as well as livestock drinking‑water sterilization. In this way, it realizes deodorization and bacterial suppression, and it further supports practical antibiotic‑free farming practices.

Our Factory

We are direct manufacturer for hypochlorous acid generators with over 20‑year manufacturing experience. Our products have been exported to 37 countries and also served thousands of agricultural clients worldwide with complete relevant certifications at the same time. We cooperate with many large‑scale planting groups and modern agricultural enterprises globally at the same time. Welcome interested partners to contact us.
Email: [email protected]
WhatsApp: +86 185 6003 3956
