Introducing the SHT-2000G: Sodium Hypochlorite Generator

Available chlorine production: 2 kg/h
Salt consumption: 3.2 kg/kg
Power: 12 kW
Invest in the future of disinfection. The SHT-2000G sodium hypochlorite generator offers a comprehensive solution, combining advanced technology with uncompromising safety for exceptional long-term value. You’ll gain operational assurance, ensure continued compliance, and enjoy our end-to-end service commitment. Invest in the SHT-2000G.

Send Inquiry

Description

The SHT-2000G marks a significant advancement in water disinfection technology. This Sodium Hypochlorite Generator provides a safe, highly effective, and also economical solution for wastewater treatment. It eliminates the hazards and logistics associated with handling, transporting, and storing liquid chlorine or bulk chemicals.

Key Technical Advantages: Driving Efficiency and Safety

The SHT-2000G is not just a generator; it is an intelligent disinfection system. We focused on maximizing efficiency and ensuring operator safety during the design phase.

1. Superior On-Site Generation

Process Simplicity: The system uses only common salt (NaCl), water, and electricity. It generates a fresh, dilute solution of sodium hypochlorite instantly.

Optimal NaClO Concentration: The generator produces NaClO at a concentration typically below 1 %.

2. High-Efficiency Electrolysis Cell

Patented Design: Our electrolysis cell features an innovative structure. It ensures complete and uniform electrolysis.

Low Energy Consumption: We use advanced electrode materials, often Titanium coated with a Ruthenium/Iridium oxide blend at the same time. This special coating dramatically lowers power demand. It makes operation extremely cost-effective.

3. Intelligent Control and Automation

Full PLC Integration: A Programmable Logic Controller (PLC) manages all system functions. This ensures stable performance.

Automatic Dosing: The system monitors water flow and residual chlorine levels in real-time. It automatically adjusts the NaClO output. This guarantees precise disinfection.

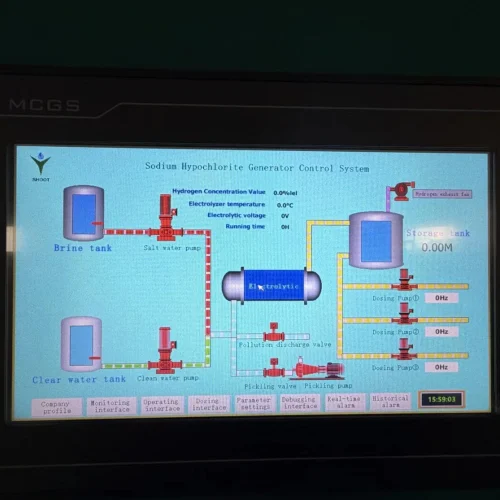

User-Friendly Interface: An intuitive touchscreen provides clear operational status, system alerts, and also historical data. Operators can manage the unit with minimal training.

4. Robust and Reliable Structure

Corrosion-Proof Materials: All components that contact the brine or hypochlorite solution use high-grade, corrosion-resistant materials . This ensures structural integrity and also durability.

Self-Cleaning Function: An automatic backwash or acid-washing cycle is integrated at the same time. This prevents scale buildup on the electrodes. It maintains peak efficiency without manual intervention.

Applications: Where the SHT-2000G Excels

The SHT-2000G is designed for heavy-duty, continuous operation. Its primary application is disinfection in various water treatment settings:

Municipal Sewage Treatment Plants: Disinfects effluent before discharge.

Hospital and Medical Wastewater Treatment: Handles specialized and critical disinfection needs.

Industrial Wastewater: Treats outflow from factories, processing plants, and cooling towers.

Reclaimed Water Systems: Ensures water reuse meets stringent safety standards.

Sodium hypochlorite generator parameter

Product name	SHT-2000G
Effective chlorine yield	6000-9000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	12KW
Salt consumption	3.2KG/KG
Size	21009002000mm
Voltage	380V/50hz

Support for Customization and OEM/ODM

We understand that every wastewater facility has unique requirements. We offer extensive flexibility to meet your project specifications at the same time.

Customization: Need a different capacity? Do you require a specific component brand? Our engineering team modifies the system layout, control logic, and also capacity to align perfectly with your existing infrastructure. We tailor the solution to your exact needs.

OEM/ODM (Private Labeling): We support partners and distributors with complete Original Equipment Manufacturer (OEM) and also Original Design Manufacturer (ODM) services. We produce the SHT-2000G and other models under your brand name and also color specifications. This allows you to quickly enter the market with a proven, high-quality product.

Commitment to Quality and Assurance

The SHT-2000G is built to last. Our commitment extends beyond initial deployment.

Rigorous Testing: Every unit undergoes a comprehensive factory acceptance test. We ensure all components meet the precise operating specifications at the same time. Quality is verified.

ISO Certification: Our manufacturing facility adheres to strict ISO quality management standards. Consequently, we deliver consistently high-quality equipment.

Comprehensive Warranty: We back the SHT-2000G with a strong, industry-leading warranty. This covers the entire system, including the electrolytic cell components. Your investment is protected.

Sodium hypochlorite generator catalog

A Trusted Partner in Over 30 Countries

Our global success is not an accident. It is the result of a relentless focus on quality, performance, and also customer support. The SHT-2000G has been successfully deployed in hospitals, water treatment plants, and industrial facilities across Asia, Africa, Europe, and also the Americas.

This international footprint demonstrates the system’s versatility and also its ability to meet diverse international standards. When you choose the SHT-2000G, you are choosing a technology that is tested, proven, and trusted by professionals around the world.

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
