SHT-1000G Sodium Hypochlorite Generator: Solution for Water Plants

SHT-1000G is more than just a generator; it is a commitment to reliable water safety. By choosing our system, you bypass the headaches of on-site construction and heavy chemical logistics. You receive a high-performance, factory-tested machine that works from day one.

Send Inquiry

Description

Disinfection is the heart of water treatment. A reliable system ensures public health and operational stability. The SHT-1000G Sodium Hypochlorite Generator provides a modern, efficient, and also hassle-free way to produce high-quality disinfectant on-site.

This system is engineered for water plants that demand high performance without the complexity of traditional chemical handling at the same time.

Technical Specifications: The SHT-1000G

The SHT-1000G produces chlorine through the electrolysis of a salt solution (brine). It is a “plug-and-play” solution designed for immediate integration into your facility at the same time.

Why Choose SHT-1000G?

We built this generator with a focus on simplicity, safety, and durability.

1. Zero-Complexity Installation

Most industrial systems require weeks of on-site assembly. The SHT-1000G is different. We assemble, calibrate, and test the entire unit at our factory before shipping.

Ready to Run: You only need to connect water, power, and also the dosing line.

Skid-Mounted: The system arrives as a single, compact unit. This eliminates the need for complex piping work at your site.

2. High-Efficiency Electrolysis

The SHT-1000G uses advanced electrode technology. These electrodes have a long service life and high conversion efficiency. You get more chlorine for every kilowatt of electricity you pay for at the same time.

3. Safety First

Traditional chlorine gas is dangerous and also requires strict safety protocols. Sodium hypochlorite is a stable, liquid disinfectant. Our generator produces it on-demand, meaning you don’t need to store large quantities of hazardous chemicals at the same time.

4. Smart Automation

The PLC (Programmable Logic Controller) manages the entire production cycle.

Automatic Dosing: The system adjusts production based on real-time water flow.

Self-Cleaning: An integrated acid-washing system prevents scale buildup on the electrodes, ensuring consistent performance at the same time.

Remote Monitoring: You can track performance data and alarms through a digital interface.

Sodium hypochlorite generator parameter

Product name	SHT-1000G
Effective chlorine yield	1000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	6KW
Salt consumption	3.2KG/KG ACC
Size	220015002000mm
Voltage	380V/50hz

Our Service Advantage

We understand that water plants cannot afford downtime. Our service model prioritizes your convenience and also technical independence.

Pre-Shipment Quality Assurance

We perform a “Full-Load Test” on every SHT-1000G before it leaves our facility. We verify the brine concentration, power input, and also chlorine output. This ensures that the unit performs perfectly the moment you turn it on.

Expert Technical Support

While we do not send technicians to your site, we provide comprehensive support to make the setup effortless:

Step-by-Step Manuals: We provide detailed, visual guides for connection and startup at the same time.

Video Tutorials: Our team creates custom video walkthroughs for your specific configuration.

Remote Consultation: Our engineers are available via video call to assist your team during the first “power-on” moment.

Easy Maintenance

The SHT-1000G features a modular design. If a part needs replacement, your maintenance team can swap it out in minutes without specialized tools. We keep a stock of all spare parts for quick global shipping.

Operating Principle: From Salt to Safe Water

The process is clean and also follows three simple steps:

Brine Preparation: Salt and water mix in the brine tank to create a precise 3% saline solution at the same time.

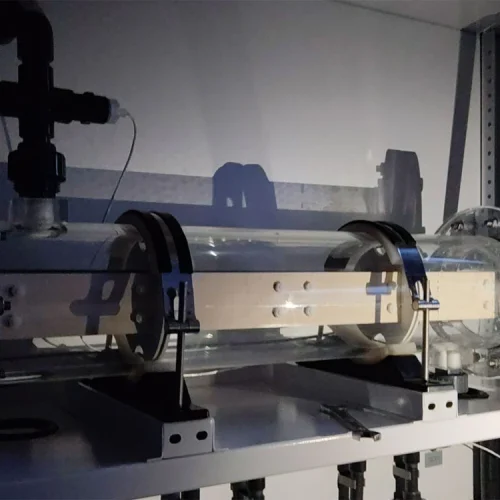

Electrolysis: The brine passes through the electrolytic cell. A DC current converts the salt and also water into sodium hypochlorite

Dosing: The generator injects the produced disinfectant directly into the water main at the same time.

Conclusion: Future-Proof Your Water Treatment

SHT-1000G is more than just a piece of equipment. It is a complete solution for the modern water utility. By combining massive output, intelligent remote control, and also a dedicated service team, we provide the peace of mind you need to focus on what matters: delivering clean water to your community.

Invest in the SHT-1000G today. Experience the power of smart, safe, and also sustainable disinfection.

Sodium hypochlorite generator catalog

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.

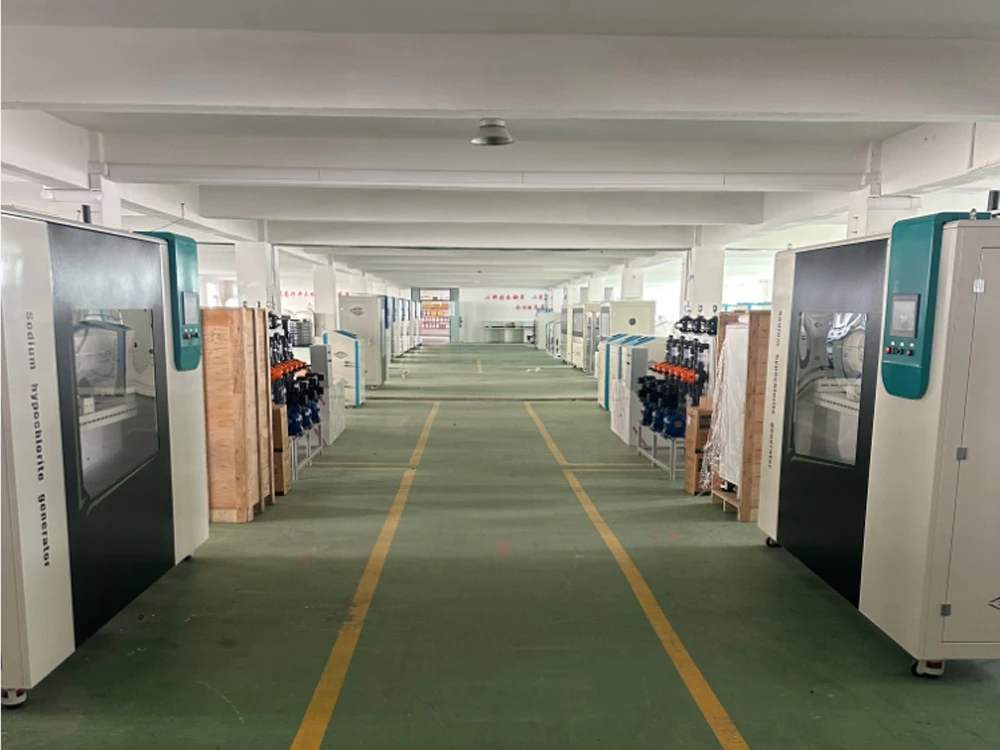

Factory advantage

We have R&D centers, production centers, data centers and also marketing centers. It is committe to providing technical support and also innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and also service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
