SHT-40000G: Industrial-Scale Sodium Hypochlorite Generation System

The SHT-40000G is a heavy-duty industrial powerhouse. It delivers a massive chlorine output to meet the demands of million-ton-per-day water plants.

Model: SHT-40000G

Effective Chlorine Capacity: 40,000 g/h (40 kg/h)

Solution Concentration: 0.8% (Stable and safe)

Application: Mega-scale municipal water plants and power plant cooling systems.

Send Inquiry

Description

Safe drinking water is the foundation of a healthy city. For large-scale water treatment plants, disinfection is the most critical step. The SHT-40000G Sodium Hypochlorite Generator provides a powerful, safe, and also efficient solution for massive water volumes.

This system replaces hazardous liquid chlorine. It produces high-purity disinfectant on-site. You only need salt, water, and also electricity. Below, we introduce the SHT-40000G, our flagship model for the world’s largest water utilities.

Why Choose the SHT-40000G?

1. Maximum Safety, Zero Risk

Safety is our top priority. Traditional chlorine gas is a deadly threat during transport and storage. The SHT-40000G changes the game.

No Toxic Leaks: You produce the chemical on-site. You never have to worry about chlorine gas leaks in residential areas.

Non-Hazardous Solution: The system produces a 0.8% concentration. This level is below the threshold for hazardous chemical management at the same time. It is as safe as common household bleach but much purer.

2. Cutting-Edge Electrolytic Efficiency

We use the best materials to ensure your plant runs efficiently. The heart of the SHT-40000G is our proprietary electrolyzer.

Premium Electrodes: We use pure titanium plates. We coat them with a specialized Ruthenium-Iridium (Ru-Ir) oxide layer.

Lower Energy Costs: This coating reduces the voltage required for the reaction. Consequently, you save thousands in electricity costs every year.

Longer Service Life: Our electrodes last over 5 to 8 years. We design them to withstand the harsh environment of continuous electrolysis.

Low Salt Consumption: The SHT-40000G optimizes the brine ratio. It uses less than 3.5 kg of salt for every 1 kg of chlorine produced.

3. Fully Automated Intelligence

Large water plants require precision and also minimal manual labor. The SHT-40000G features a fully integrated smart control suite.

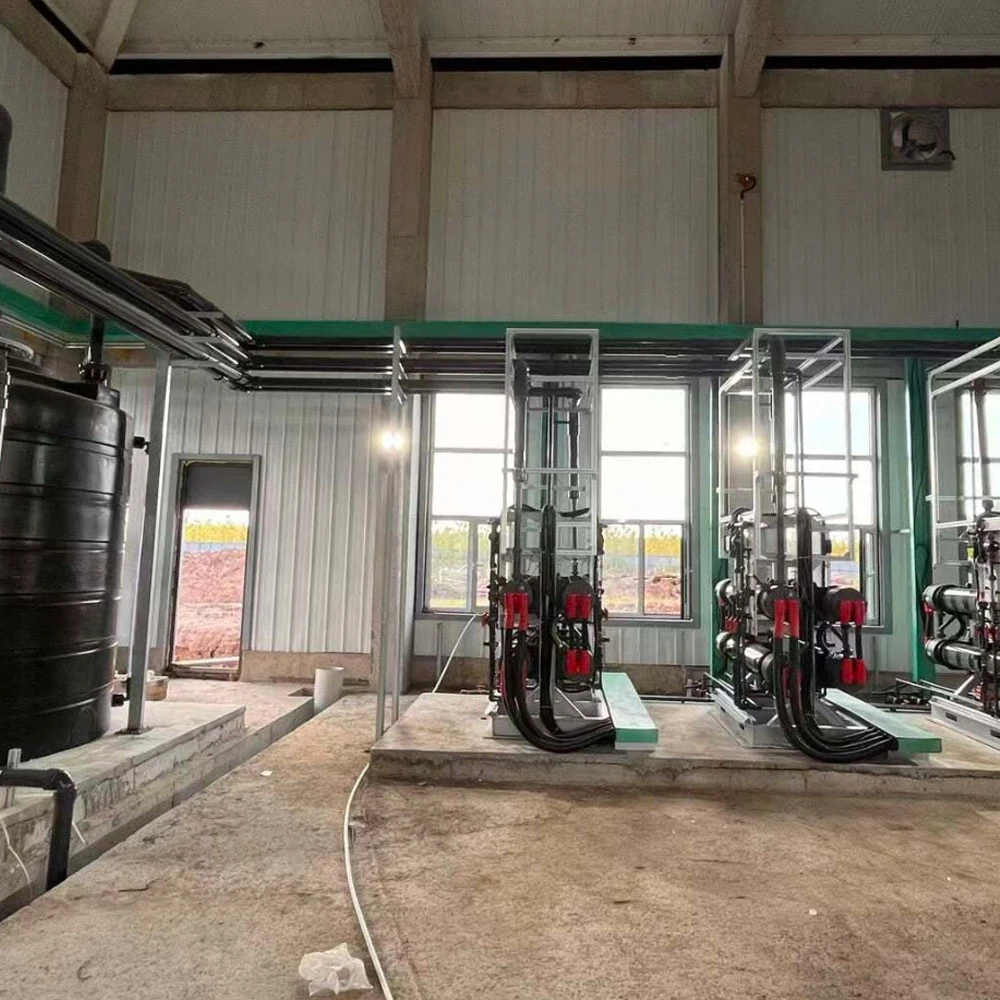

Sodium hypochlorite generator manufacturer

Sodium hypochlorite generator parameter

Product name	SHT-40000G
Effective chlorine yield	40000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	240KW
Salt consumption	3.2KG/KG ACC
Size	220015002000mm
Voltage	380V/50hz

How the SHT-40000G Works

The process is elegant and effective.

Water Softening: The system removes hardness ions. This protects the electrolyzer from scaling.

Brine Mixing: The system dissolves industrial salt into a saturated brine. Then, it dilutes it to the exact concentration needed.

Electrolysis: The brine flows through the SHT-40000G cells. Electricity breaks the salt molecules. This creates sodium hypochlorite and also hydrogen.

Hydrogen Removal: A powerful cyclone separator and also fan system remove the hydrogen safely.

Dosing: The final 0.8% solution flows into the storage tank, ready for the high-pressure dosing pumps at the same time.

Siemens PLC System: The “brain” of the machine is a high-end Siemens PLC. It manages the entire process flow automatically at the same time.

One-Touch Operation: Start or stop the system with a single button. The HMI (Human-Machine Interface) displays all data in real-time.

Smart Dosing: The system communicates with your plant’s flow meters. It adjusts the chlorine output based on the incoming water volume and also residual chlorine levels.

Remote Monitoring: Your engineers can monitor the system from the central control room or even a mobile device at the same time.

Comprehensive Training

We empower your team. We provide a intensive training program for your operators.

Basic Operations: How to start, stop, and also monitor.

Maintenance: How to perform acid washing and also sensor calibration.

Safety: How to respond to alarms and also handle raw materials.

Troubleshooting: How to identify and also fix minor issues without waiting for a technician.

24/7 Hotline: Our technical experts are one phone call away.

Annual Check-ups: We offer yearly maintenance visits. We check the health of your electrodes and also update your software.

Unmatched Service and Customization

We do not just sell machines; we provide solutions. Meanwhile, we offer comprehensive OEM and also ODM services. Whether you need specific labeling or custom technical configurations, we can meet your requirements.

Before any unit leaves our factory, our engineers perform rigorous “factory commissioning.” We debug the entire system to ensure it works perfectly out of the box. This “factory-commissioned” approach reduces your on-site labor costs and prevents technical errors during startup.

Sodium hypochlorite generator catalog

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
