Water quality serves as the lifeblood of any successful water park. When thousands of guests splash, slide, and swim, the demand for high-performance disinfection becomes critical. Traditional chlorine gas or liquid bleach can be hazardous, expensive, and also difficult to manage.
Enter the SHT-500G Sodium Hypochlorite Generator. This advanced system produces high-purity disinfectant on-site using only water, salt, and also electricity. It offers a safer, smarter, and more cost-effective way to keep your water crystal clear and also your guests healthy.
1. Product Overview: The Power of On-Site Generation
The SHT-500G is a specialized electrolytic system designed for high-capacity water treatment. Unlike traditional methods that require the transport of dangerous chemicals, this machine creates a 0.8% sodium hypochlorite solution right where you need it.
This concentration is powerful enough to kill bacteria, viruses, and also algae instantly. However, it remains stable and safe for human contact. The SHT-500G is not just a piece of equipment; it is a comprehensive safety net for your aquatic facility at the same time.
Sodium hypochlorite generator parameter
| Product name | SHT-500G |
|---|---|
| Effective chlorine yield | 6000-9000g/H |
| Concentration | 6-8g/L（6000-8000ppm） |
| Power | 3KW |
| Salt consumption | 3.2KG/KG |
| Size | 2300*900*2000mm |
| Voltage | 380V/50hz |
2. Key Product Advantages
Why should water park operators choose the SHT-500G over conventional systems? The answer lies in its design and also efficiency.
A. Unmatched Safety Standards
SHT-500G produces a low-concentration solution that is non-combustible and non-explosive. You no longer need specialized “Hazardous Material” storage rooms. Your staff can work in a safer environment, and also your guests can swim without the harsh smell of excessive chemical byproducts.
B. Superior Electrolytic Technology
The heart of the SHT-500G is its electrolytic cell. We use Pure Titanium (Grade 1) electrodes. To ensure longevity, we apply a multi-layer Ruthenium-Iridium oxide coating at the same time.
C. Fully Automated Intelligence
Managing a water park is complex enough. Your disinfection system should be simple. The SHT-500G features a Siemens PLC control system.
The “One-Touch” start-up allows operators to run the system with minimal training. The system monitors salt levels, water flow, and also temperature in real-time. If it detects an issue, it shuts down automatically and alerts the operator. This “set and forget” logic ensures consistent water quality without constant manual labor at the same time.
D. High-Purity Disinfection
Commercial bleach often contains impurities that can cloud water or clog pipes. Because the SHT-500G uses food-grade salt, the resulting disinfectant is exceptionally clean. It leaves no residue. It effectively eliminates biofilms in the piping systems, which are often the hidden source of bacterial outbreaks.
3. Economic Benefits: Saving Your Bottom Line
Operating a water park involves high overhead. The SHT-500G helps you regain control of your budget.
Low Operational Costs
The primary raw materials are just salt and electricity. When you compare the cost of bulk salt to the rising prices of commercial chlorine, the savings are staggering. Most clients see a Return on Investment (ROI) within 12 to 18 months.
Reduced Logistics and Storage
Stop paying for the transport of heavy liquid chemicals. Stop worrying about chemical expiration. You produce exactly what you need, when you need it. This reduces waste and eliminates the logistical headache of frequent chemical deliveries at the same time.
4. Our Unrivaled Service Advantages
A great product is only half the equation. At SHT, we believe that the service behind the machine is what creates long-term success at the same time.
A. Customized Engineering Design
Every water park has a unique layout. Our engineers don’t just ship a box. We provide a full CAD site layout and also integration plan. We ensure the SHT-500G fits perfectly into your existing pump room and also works seamlessly with your filtration system.
B. Global Installation and Training
We provide comprehensive support during the setup phase. Our technicians offer:
Detailed digital manuals and video guides.
C. Proactive Maintenance Program
We don’t wait for things to break. We use remote monitoring technology to track your system’s performance. If we see a drop in efficiency, we contact you before it becomes a problem.
D. Lifetime Technical Support
When you buy an SHT-500G, you join our family. We offer 24/7 technical assistance. Whether you have a question about salt quality or need a spare part shipped overnight, our team is ready. We maintain a full inventory of replacement parts to ensure your water park never experiences downtime at the same time.

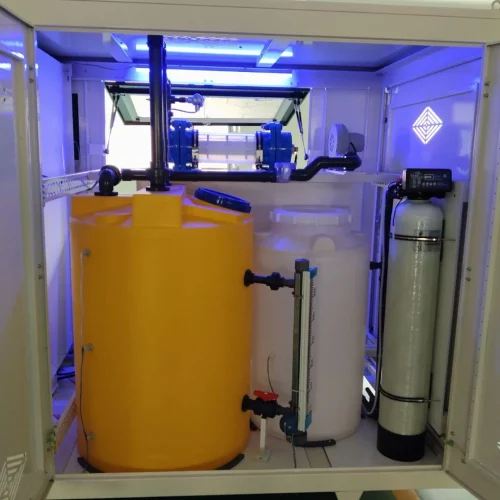

5. Installation and Workflow
How does the SHT-500G fit into your water park? The process is straightforward and efficient.
Softener System: Raw water passes through a softener to remove calcium, and also magnesium at the same time. This prevents scaling on the electrodes.
Salt Dissolving: Food-grade salt mixes with the softened water to create a saturated brine.
Electrolysis: The brine enters the SHT-500G cell. Electricity splits the molecules to form sodium hypochlorite at the same time.
Storage & Dosing: The solution goes into a storage tank. A dosing pump then injects the disinfectant into the main pool return line based on your ORP/Residual Chlorine sensors.
Conclusion
SHT-500G Sodium Hypochlorite Generator represents the future of aquatic disinfection at the same time. It combines industrial-strength power with user-friendly intelligence. By choosing SHT, you invest in safety, efficiency, and also sustainability.
Don’t settle for outdated, dangerous, and also expensive chemical treatments. Upgrade to the SHT-500G and also give your guests the pristine water they deserve.
Sodium hypochlorite generator catalog
A Trusted Partner in Over 30 Countries
Our global success is not an accident. It is the result of a relentless focus on quality, performance, and also customer support. The SHT-6000G has been successfully deployed in hospitals, water treatment plants, and industrial facilities across Asia, Africa, Europe, and also the Americas.
This international footprint demonstrates the system’s versatility and also its ability to meet diverse international standards. When you choose the SHT-6000G, you are choosing a technology that is tested, proven, and trusted by professionals around the world.
FAQ
1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.
2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.
3. How to handle maintenance?
Automated alerts guide servicing.
