SHT-6000G Sodium Hypochlorite Generator

Water safety is paramount. Municipal water treatment demands absolute reliability. The SHT-6000G Sodium Hypochlorite Generator delivers exactly that. It represents a significant leap forward in water disinfection technology. We designed this system for large-scale municipal applications. It provides the highest standard of safety, efficiency, and also operational excellence. The SHT-6000G is the smart, secure solution for your water plant’s disinfection needs.

The Core Advantage: Our Electrolytic Cell Technology

The heart of the SHT-6000G is our proprietary electrolytic cell. This technology is where superior performance begins.

I. High-Efficiency Anodes

We use specialized ruthenium and iridium oxide coatings on titanium substrates. This ensures long-term performance.

Improved Conversion Rate: The coating maximizes the electrochemical conversion of chloride ions into effective disinfectant. Efficiency is guaranteed.

Extended Service Life: Anode life exceeds industry standards. This reduces replacement frequency. Consequently, your total cost of ownership decreases significantly.

Uniform Current Distribution: Our cell design ensures an even current flow. This prevents localized wear and also maintains consistent output quality.

II. Optimized Cell Structure

The cell features a non-diaphragm, single-chamber design. Therefore, maintenance is simpler.

Low Maintenance: We minimized complex internal components. Cleaning cycles are extended.

Safety Feature: The structure facilitates safe hydrogen dilution and also venting. System safety is intrinsic.

Low Salt Consumption: We fine-tuned the cell gap and flow dynamics. This reduces the amount of salt required per gram of chlorine at the same time. It saves you money.

Sodium hypochlorite generator dosing system

Unmatched Quality: International Brand Integration

A generator is only as good as its components. We commit to unwavering reliability. As a result, we partner with the world’s leading brands for critical components. This guarantees operational stability and quality.

I. Precision Dosing and Metering

Accurate dosing is essential for compliance and cost control. We rely on global leaders for fluid control.

Metering Pumps (Dosing Pumps): We integrate pumps from ProMinent, or Grundfos. These brands are synonymous with precision. They offer accurate chemical injection under various pressures. Thus, over-dosing and under-dosing are eliminated.

Chemical Transfer Pumps: High-quality pumps move the produced NaClO to the storage tank and then to the dosing point. They are built for corrosion resistance and also sustained performance. System integrity lasts for years.

II. Intelligent Control and Automation

Modern water plants require sophisticated automation. The SHT-6000G delivers this via an industry-leading control package.

Touch Screen Interface: We use high-resolution Siemens HMI (Human-Machine Interface) touch screens. This provides an intuitive and also comprehensive control center.

Real-Time Monitoring: Operators view production rate, current, voltage, temperature, and also salt levels instantly.

Data Logging: The system automatically logs critical operating parameters. This simplifies compliance reporting. Furthermore, it allows for predictive maintenance analysis.

PLC (Programmable Logic Controller): The system uses Siemens or Schneider Electric PLCs. These industrial controllers manage all operational sequences. They ensure seamless and also safe automatic startup, shutdown, and error handling. Automation maximizes uptime.

Sensors and Instrumentation: High-accuracy sensors from brands like Endress+Hauser. This ensures the generator operates within optimal, safe parameters. Every measurement is trustworthy.

Sodium hypochlorite generator parameter

Product name	SHT-6000G
Effective chlorine yield	6000-9000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	35KW
Salt consumption	3.2KG/KG
Size	23009002000mm
Voltage	380V/50hz

Technical Advantage Highlights: Why Choose SHT-6000G?

Our system is engineered for superior performance and also longevity. We focus on key areas that matter most to water utilities.

1. Intelligent Hydrogen Management

Hydrogen gas is an unavoidable byproduct of the electrolysis process. We manage it proactively and also safely.

Forced Air Exhaust: The system incorporates a robust ventilation system. It continuously extracts hydrogen from the cell and also storage tank headspaces.

Dilution and Monitoring: Hydrogen concentration is kept far below the lower explosive limit. In addition, dedicated hydrogen sensors provide continuous safety monitoring. Your plant is always secure.

2. Low-Voltage, High-Current Power Supply

Our power supply unit (PSU) is specially designed for electrochemical processes.

Stable DC Output: It provides a highly stable, ripple-free direct current. This is crucial for maximizing anode efficiency and also lifespan.

Automatic Polarity Reversal: The system automatically reverses the polarity of the cell on a timed schedule. This dissolves scale buildup (calcium and also magnesium precipitates) on the cathode. This keeps the cell clean. As a result, it maintains peak efficiency without manual acid washing. Less maintenance is needed.

Advanced Brine Softening SystemThe quality of the salt brine significantly impacts cell performance.Integrated Softener: We include a high-capacity water softener. It removes hardness ions from the process water.

Scale Prevention: This pre-treatment step drastically minimizes scale formation inside the electrolytic cell. Cell efficiency remains high. Therefore, manual maintenance intervals are greatly extend.

Sodium hypochlorite generator certificate

Commitment to Quality and Assurance

The SHT-6000G is built to last. Our commitment extends beyond initial deployment.

Rigorous Testing: Every unit undergoes a comprehensive factory acceptance test. We ensure all components meet the precise operating specifications at the same time. Quality is verified.

ISO Certification: Our manufacturing facility adheres to strict ISO quality management standards. Consequently, we deliver consistently high-quality equipment.

Comprehensive Warranty: We back the SHT-6000G with a strong, industry-leading warranty. This covers the entire system, including the electrolytic cell components. Your investment is protected.

Sodium hypochlorite generator catalog

A Trusted Partner in Over 30 Countries

Our global success is not an accident. It is the result of a relentless focus on quality, performance, and also customer support. The SHT-6000G has been successfully deployed in hospitals, water treatment plants, and industrial facilities across Asia, Africa, Europe, and also the Americas.

This international footprint demonstrates the system’s versatility and also its ability to meet diverse international standards. When you choose the SHT-6000G, you are choosing a technology that is tested, proven, and trusted by professionals around the world.

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.

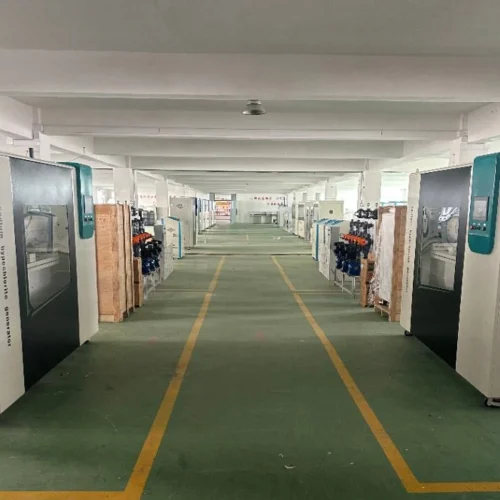

Factory advantage

We have R&D centers, production centers, data centers and marketing centers. It is committe to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
