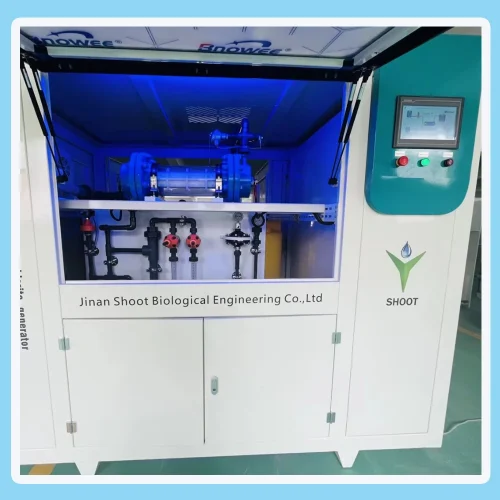

Sodium hypochlorite generator manufacturer

SHT-700G sodium hypochlorite generator for wastewater treatment

SHT-700G On-Site Sodium Hypochlorite Generator represents the next evolution in water disinfection technology. This advanced system empowers your facility to produce its own disinfectant solution safely and efficiently. It uses only simple, readily available ingredients: salt, water, and electricity.

Send Inquiry

Description

Wastewater treatment is a cornerstone of public health and environmental protection. Central to this process is effective disinfection. For decades, facilities have relied on traditional methods like chlorine gas or bulk sodium hypochlorite. However, these methods present significant challenges. They involve handling hazardous materials, face complex supply chains, and pose safety risks to both staff and the surrounding community.

SHT-700G sodium hypochlorite generator fundamentally changes your operational model. It eliminates the dangers and logistical headaches of traditional chemical disinfection. Instead, it provides a reliable, cost-effective, and powerful solution designed for the demands of modern wastewater treatment. This system is not just an equipment upgrade; it is a strategic investment in the safety, efficiency, and sustainability of your entire operation. Ultimately, it puts you in complete control of your disinfection process.

The Core Technology – How On-Site Generation Works

The technology behind the SHT-700G is both powerful and straightforward. It is based on the proven scientific principle of electrolysis. This process is clean, controlled, and remarkably efficient. The generator requires only three common consumables to operate.

First, the system uses high-purity salt. The salt is dissolved in softened water to create a precisely concentrated brine solution. This step is fully automated, ensuring the correct concentration for optimal performance. Next, a high-efficiency pump moves this brine solution into the heart of the system: the electrolytic cell.

Inside the cell, advanced electrodes apply a low-voltage DC current to the brine. This electrical energy initiates an electrochemical reaction. The sodium chloride (salt) and water molecules break apart and reform into a new substance: a dilute sodium hypochlorite (NaOCl) solution, typically at a concentration of 0.8%. This concentration is below the hazardous material threshold, making the product significantly safer to handle and store.

The SHT-700G is engineered with a robust, dedicated ventilation system. This system safely and effectively removes the hydrogen gas from the unit, venting it to the outside atmosphere. The freshly produce sodium hypochlorite solution is then safely store in a day tank, ready for immediate and precise dosing into the wastewater stream. This entire process is continuous and fully automated, providing a constant supply of potent disinfectant on demand.

Sodium hypochlorite generator dosing pump

2. Sodium hypochlorite generator parameter

Product name	SHT-700G
Effective chlorine yield	700g/H
Concentration	6-8g/L（6000-8000ppm）
Power	5KW
Salt consumption	3.2KG/KG
Size	200011001900mm
Voltage	380V/50hz

In-Depth Look – Key Features of the SHT-700G

SHT-700G is engineer for superior performance, reliability, and also ease of use. Every component is designed to withstand the demanding conditions of a wastewater treatment facility.

1. High-Performance Titanium Electrolyzer The core of the SHT-700G is its advanced electrolytic cell, or electrolyzer. It is constructed with high-quality titanium electrodes. These electrodes are coated with rare metal oxides, a feature that maximizes chlorine evolution efficiency and also dramatically extends the cell’s operational life. Furthermore, the transparent housing of the cell allows for easy visual inspection, simplifying maintenance and troubleshooting. This robust design ensures consistent, high-yield production of sodium hypochlorite for years.

2. Advanced PLC and HMI Control System This generator features a sophisticated Programmable Logic Controller (PLC) that automates every aspect of its operation. From brine creation and current regulation to solution transfer and also safety monitoring, the PLC manages the entire process with precision. A user-friendly Human-Machine Interface (HMI) provides a clear, intuitive touchscreen display. Operators can easily monitor system status, view alarms, adjust production rates, and access historical data. The system also allows for remote monitoring and control, offering unparalleled operational flexibility.

3. Comprehensive Integrated Safety Systems Safety is the most critical design principle of the SHT-700G. The unit includes multiple layers of protection. An integrated hydrogen detector continuously monitors the air within the cabinet. If it detects even a low level of hydrogen, it automatically shuts down the system and activates an alarm. In addition, leak sensors are placed at critical points to detect any potential fluid leaks. The system also features protections against over-voltage, over-current, and overheating, ensuring safe and reliable operation under all conditions.

4. Robust, Corrosion-Proof Construction SHT-700G is built for durability. All wetted components, including pipes, valves, and also tanks, are make from high-grade, corrosion-resistant materials such as UPVC, PTFE, and titanium. This prevents degradation from the corrosive nature of brine and sodium hypochlorite. The entire system is house in a well-ventilated, corrosion-proof cabinet, protecting the sensitive electronic components and also ensuring a long service life in the humid and chemically aggressive atmosphere of a treatment plant.

5. Smart Dosing and Residual Monitoring The system seamlessly integrates with your disinfection process. An optional residual chlorine analyzer can be connected to the SHT-700G’s control system. This creates a closed-loop control system. The analyzer continuously measures the residual chlorine in the treated effluent. Then, it sends this data back to the PLC, which automatically adjusts the dosing pump’s speed. As a result, the system maintains the precise disinfection level required, preventing under-dosing or costly over-dosing.

The Smart Investment for a Modern Facility

1. SHT-700G on-site sodium hypochlorite generator is a technologically advanced, safe, and also economically sound solution for wastewater disinfection. It directly addresses the primary drawbacks of traditional chemical methods while delivering superior performance and control.

2. By moving disinfection in-house, you remove external risks from your operation. You create a safer environment for your employees. You gain complete control over your disinfectant supply chain. Furthermore, you reduce your long-term operational costs and enhance your facility’s environmental credentials.

3. The SHT-700G sodium hypochlorite generator is more than just a piece of equipment. It is a comprehensive platform for optimizing a critical aspect of your water treatment process. It is a reliable, robust, and also intelligent system that will provide exceptional value for years to come. Making the switch to the SHT-700G is a forward-thinking decision that will strengthen your operations and also prepare your facility for the future.

Sodium hypochlorite generator catalog

5. A Trusted Partner in Over 30 Countries

Production Capacity: 800 grams of free available chlorine per hour

Sodium Hypochlorite Concentration: 0.8% (non-hazardous)

Raw Materials: Salt (NaCl) and Water (H₂O)

Power Consumption: Optimized for high efficiency and low energy use

Control System: Fully automated with PLC control and user-friendly HMI

Materials of Construction: Corrosion-resistant materials for long life and durability

Safety Features: Integrated leak detection, hydrogen ventilation, and emergency shutdown

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
