Modern industrial, municipal, and also commercial facilities require a reliable supply of disinfectant. Traditional bulk chemical deliveries pose high costs, safety risks, and also shelf-life degradation.
The SHT-8500G On-Site Sodium Hypochlorite Generator solves these problems directly. It generates high-purity sodium hypochlorite solution (<1% concentration) on demand using three basic inputs: salt, water, and electricity.
This comprehensive guide highlights the core engineering strengths of the SHT-8500G model and details our world-class support framework.
Advanced Product Advantages & Innovations
The SHT-8500G stands out because of its exceptional safety, economic value, and robust engineering.
Pure Safety: Zero Hazardous Chemical Handling
Traditional disinfection methods rely on liquid chlorine gas cylinders or high-strength commercial sodium hypochlorite. Both options create severe workplace hazards. Chlorine gas leaks can threaten surrounding communities, and also concentrated liquid chemical spills cause chemical burns and degrade equipment.
The SHT-8500G changes this dynamic completely:
Non-Hazardous Concentration: The machine produces a diluted solution below 1%. This concentration falls below standard hazardous chemical classification thresholds.
No Toxic Outgassing: The low-strength solution does not release dangerous chlorine fumes into the storage room air.
Lower Workplace Risk: Operators manage common industrial salt instead of handling corrosive liquids. This reduces liability, lowers insurance premiums, and also satisfies environmental regulations.
Maximized Cell Durability and Chemistry

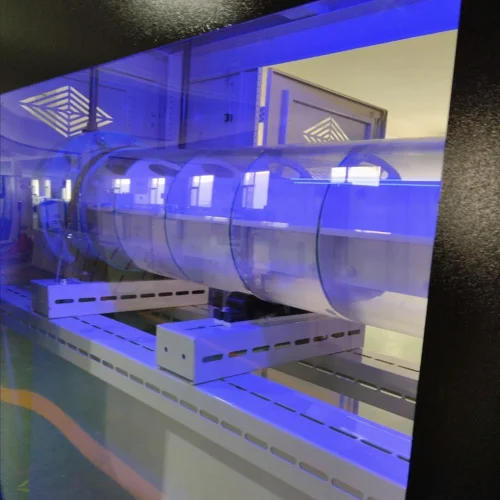

The heart of the SHT-8500G is its premium electrolytic cell assembly. The system uses rare-earth metal catalysts to maximize efficiency and also extend equipment lifespan.Noble Metal Coating: The anodes feature a multi-layer Ruthenium-Iridium Oxide coating on a pure titanium substrate. This formulation lowers the required overpotential, reduces heat generation, and also resists oxidation.
Vertical Cell Orientation: The cell plates stand vertically. This physical alignment allows hydrogen gas bubbles to detach from the plates instantly. It prevents gas binding, which causes hot spots and also shortens cell life.
Extended Service Life: Under standard operating conditions, our advanced cells deliver an operational lifespan exceeding 50,000 running hours.
High-Velocity Auto-Scouring Fluid Dynamics
Scaling from hardness minerals like calcium and magnesium ions causes significant downtime for on-site generators. The SHT-8500G combats this issue through intelligent fluid dynamics.
Hydrodynamic Cleaning: The internal piping and cell geometry maintain a high-velocity electrolyte flow. This constant turbulence creates a physical scouring action that prevents mineral crystals from binding to the plates.
Minimal Acid Washing: Because the physical design minimizes mineral buildup, the system requires very few acid-cleaning cycles. This protects electrode coatings from premature chemical wear.
Sodium hypochlorite generator parameter
| Product name | SHT-8500G |
|---|---|
| Effective chlorine yield | 8500g/H |
| Concentration | 6-8g/L（6000-8000ppm） |
| Power | 55KW |
| Salt consumption | 3.2KG/KG ACC |
| Size | 2200*1500*2000mm |
| Voltage | 380V/50hz |
Diverse Applications in Diverse Water Sectors
The high-capacity 8,500g/h output makes the SHT-8500G an ideal choice for many water treatment sectors.
Municipal Potable Water Treatment
Municipal water plants must maintain a stable disinfectant residual across broad distribution piping networks.
The SHT-8500G provides precise chemical dosing for large municipal flows.
The low-strength solution reduces the formation of harmful Disinfection Byproducts (DBPs), such as Trihalomethanes (THMs).
It eliminates the need for emergency risk management plans associated with hazardous gas storage.
Industrial Cooling Towers and Power Generation
Cooling water loops present ideal conditions for biological growth, biofilm formation, and also algae accumulation.
Biofilms act as thermal insulators on heat exchangers, which drops plant efficiency and also increases energy bills.
The SHT-8500G provides continuous chlorination to keep cooling surfaces clean.
It eliminates pathogens like Legionella bacteria, which protects worker health and also protects the surrounding environment from airborne contamination.
Industrial Wastewater and Water Reuse Plants
Industrial effluents often contain high organic loads and diverse bacterial populations.
The SHT-8500G provides a powerful oxidative charge to break down organic complexes, destroy chemical odors, and also eliminate fecal coliforms.
In water reuse facilities, on-site generation delivers reliable disinfection for industrial recycling loops, irrigation systems, and also process wash lines.
Unrivaled Operational Excellence & Automated Control
The SHT-8500G runs on a fully integrated, automated platform. Operators can view and also control the entire disinfection process with minimal manual effort.
Intelligent Process Automation

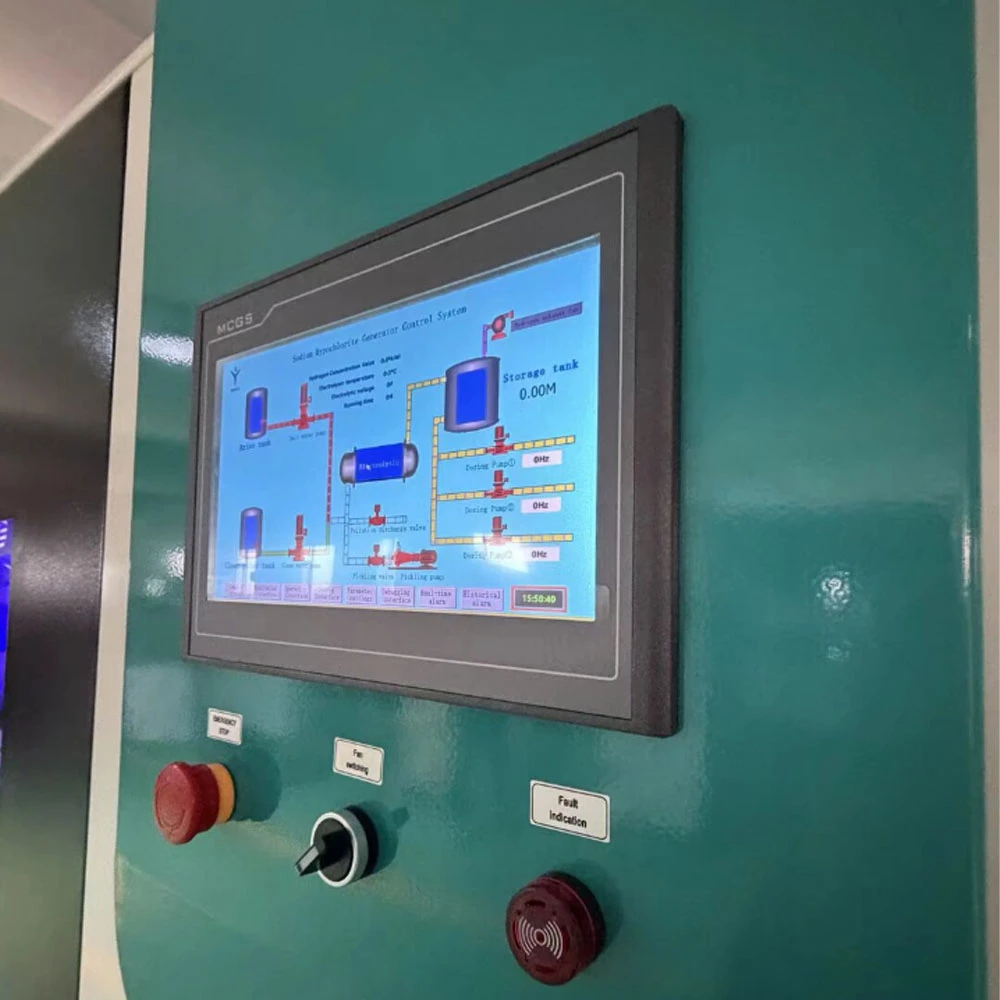

A programmable logic controller (PLC) manages the system’s operation. It monitors sensor telemetry continuously to maximize production efficiency.
Automated Brine Blending: Volumetric flow meters and also variable-speed brine pumps match salt saturation with incoming water pressure. This ensures the electrolyte maintain a precise salt concentration before it enters the cells.
Dynamic Smart Dosing: The system communicates with downstream flow meters and also online residual chlorine analyzers. It adjusts its current output automatically to match shifting water flow rates or changing organic demands.
Automatic Fault Management: The control system monitors cell voltage, solution temperature, and also fluid flow rates. If a metric moves outside safe thresholds, the system triggers a clean shutdown and displays the exact fault on the touchscreen interface.
Integrated Safe Hydrogen Management
Hydrogen gas is a natural byproduct of the electro-chlorination process. Safely handling this gas is essential for plant operation.
Forced Dilution Air Fans: High-capacity blowers direct a steady stream of air into the product storage tanks and also cell headers.
Explosion-Proof Ventilation: The system dilutes hydrogen gas well below its lower explosive limit (LEL). It vents the safe mixture into the outside atmosphere, removing any risk of gas pockets forming in the building.
Conclusion: Future-Proof Your Water Treatment
SHT-8500G is more than just a piece of equipment. It is a complete solution for the modern water utility. By combining massive output, intelligent remote control, and also a dedicated service team, we provide the peace of mind you need to focus on what matters: delivering clean water to your community.
Invest in the SHT-8500G today. Experience the power of smart, safe, and also sustainable disinfection.
Sodium hypochlorite generator catalog
FAQ
1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.
2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.
3. How to handle maintenance?
Automated alerts guide servicing.
