7000G Sodium Hypochlorite Generator

Finding a reliable disinfection solution is the cornerstone of any municipal water project. Consequently, the SHT-7000G Sodium Hypochlorite Generator stands out as a premier choice for water plants worldwide. This system provides a safe, efficient, and cost-effective alternative to dangerous liquid chlorine cylinders.

Moreover, we have refined this technology through years of international deployment. We don’t just sell equipment; we provide a complete safety net for your community’s water supply.

Application: Solutions for Water Plants

Water treatment plants face unique challenges. For instance, varying flow rates and seasonal water quality changes require flexible dosing.

Recommended Dosing Concentrations

While every water source differs, we generally recommend the following guidelines for municipal use:

Groundwater: 1.0– 2.0 mg/L.

Surface water: 2.0 – 4.0 mg/L.

Residual Maintenance: 0.2 – 0.5 mg/L at the tap. This prevents secondary pollution in the pipe network.

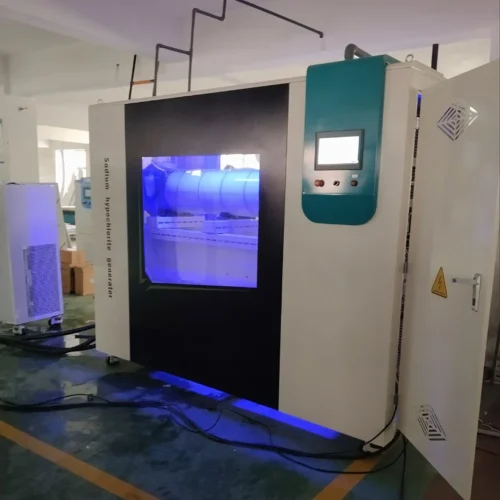

Sodium hypochlorite generator production site

Sodium hypochlorite generator parameter

Product name	SHT-7000G
Effective chlorine yield	7000-9000g/H
Concentration	7-9g/L（7000-9000ppm）
Power	45KW
Salt consumption	3.2KG/KG
Size	19009002000mm
Voltage	380V/50hz（Adjustable）

Implementation Strategy

Initially, our engineers analyze your raw water quality. Then, we calibrate the SHT-7000G to match your peak demand. Subsequently, the system adjusts its output automatically based on real-time flow meters. Thus, you never over-dose or under-dose your water.

Global Footprint: A Proven Track Record

We take pride in our international presence. To date, we have exported our generators to over 30 countries. Our footprint spans across diverse climates and regulatory environments.

Regional Success Stories

South Africa: We have installed multiple units in rural provinces. These systems provide clean drinking water to thousands of households where chemical delivery is difficult.

Europe: Our SHT series meets strict EU environmental standards. We provide CE and ISO certifications.

South America: In Brazil and Chile, our generators tackle high-turbidity river water. Even in harsh conditions, the SHT-7000G remains durable and reliable.

Sodium hypochlorite generator certificate

Operational Benefits: Beyond Disinfection

Choosing the SHT-7000G impacts your entire operational workflow.

Simplified Logistics

Instead of managing complex chemical supply chains, you only need to manage salt deliveries. Salt is non-toxic and has an indefinite shelf life. Therefore, your inventory management becomes much simpler.

Low Maintenance Requirements

We designed the SHT-7000G for “set and forget” operation. Periodic acid washing of the electrodes is automated. Additionally, the modular design allows for quick part replacement without shutting down the entire plant.

Environmental Impact

Sustainability is no longer optional. Fortunately, the SHT-7000G is an eco-friendly solution. It produces a low-concentration solution (0.8%). This concentration is non-hazardous according to most international standards. Consequently, you reduce your plant’s carbon footprint by eliminating heavy chemical transport.

Sodium hypochlorite generator catalog

Hypochlorous acid generator shipped to South America to help agricultural

Why Power Plants Prefer SHOOT

In summary, the SHT-7000G Sodium Hypochlorite Generator is more than just a machine. It is a comprehensive solution for modern water disinfection. With our extensive global experience and robust engineering, we ensure your facility operates safely and efficiently.

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
