Effective wastewater treatment protects our environment and secures compliance with strict ecological regulations. Municipal sewage plants and industrial facilities face massive volumes of effluent every single day. They must eliminate harmful pathogens before discharging water into natural streams. However, traditional chemical dosing brings severe operational headaches. Storing large volumes of hazardous chemicals creates safety risks, while volatile market prices ruin tight budgets.

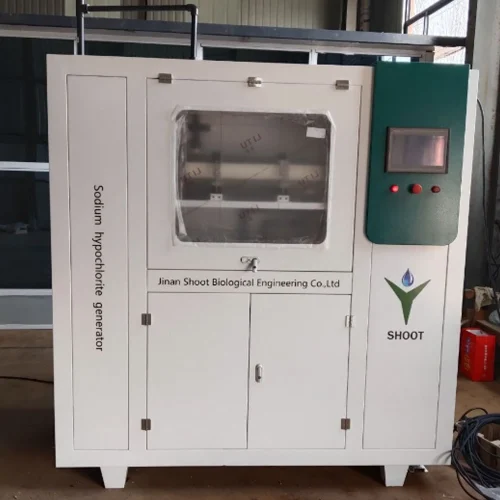

Fortunately, you can eliminate these risks permanently. The SHT-800G Sodium Hypochlorite Generator offers a modern, automated solution. This industrial system produces high-strength, pure disinfectant right on-site. It uses only three simple inputs: water, electricity, and ordinary salt. Therefore, you can stop purchasing and storing dangerous commercial chlorine liquid or gas.
When you choose the SHT-800G, you invest in two core values: uncompromising product quality and world-class product service.
1. Industrial-Grade Product Quality: Built for Demanding Environments
Wastewater facilities operate in harsh, humid, and corrosive environments. Consequently, equipment reliability is your top requirement. We build every component of the SHT-800G to withstand these exact conditions, ensuring uninterrupted, 24/7 water disinfection.

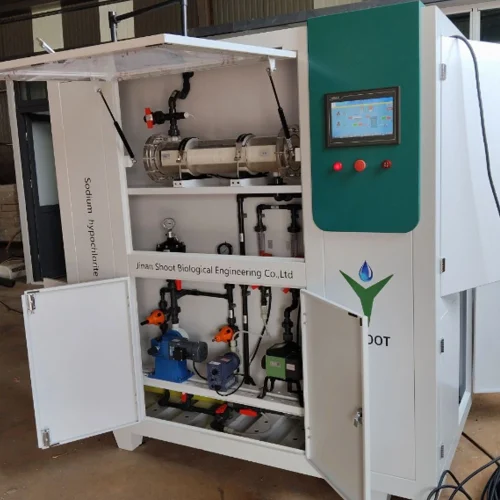

Premium Electrolytic Cell Design
The electrolytic cell acts as the heart of the machine. Therefore, we use the highest standard materials available.
Grade 1 Pure Titanium: We construct the electrode plates from pure titanium substrates. This ensures complete dimensional stability under high electrical currents.
Ruthenium-Iridium Multi-Layer Coating: We apply a proprietary noble metal oxide coating to the plates. This specialized recipe maximizes chlorine production efficiency at the same time.
Excellent Longevity: The robust coating resists harsh electrochemical wear. Consequently, our cells achieve a working lifespan exceeding 5 years.
Optimized Geometry: The internal layout maximizes liquid flow uniformity. This keeps the cell temperature low and extends component life.
Intelligent Automation and Safety Interlocks
Modern wastewater plants require smart systems that run efficiently with minimal manual labor. The SHT-800G incorporates a premium PLC (Programmable Logic Controller) control center to achieve this at the same time.
Real-Time Monitoring: Smart sensors constantly track parameters like temperature, brine flow, and also electrical current.
Automated Dosing Sync: The PLC communicates directly with your plant’s flow meters. It adjusts chlorine production automatically based on real-time water volume changes.
Advanced Safety System: Safety is a non-negotiable metric. The system includes multi-stage hydrogen dilution blowers. If ventilation fails or liquid levels drop, the machine shuts down instantly and sounds an alarm.
Heavy-Duty Cabinet Enclosure
Wastewater environments can quickly damage cheap equipment. Therefore, the SHT-800G uses a fully enclosed, modular cabinet made from high-strength PVC and anti-corrosive alloy materials. This neat layout shields sensitive electronics from moisture, dust, and corrosive vapors.
2. Transparent Chemistry: How the SHT-800G Works
Simplicity drives efficiency. The SHT-800G converts stable raw materials into an active sanitizer through a safe, automated process.
First, the system dissolves industrial salt in water to create a precise brine solution. Next, this brine enters the electrolytic cell. The high-frequency DC power supply sends current through the plates, splitting the salt molecules. This reaction creates a fresh, low-concentration sodium hypochlorite solution (0.8%). Finally, a heavy-duty dosing pump injects this fresh liquid directly into the disinfection contact tank. Because the solution concentration is low, it remains completely safe to handle and store.
3.Sodium hypochlorite generator parameter
| Product name | SHT-800G |
|---|---|
| Effective chlorine yield | 800g/H |
| Concentration | 7-9g/L（7000-9000ppm） |
| Power | <4.5KW |
| Salt consumption | 3.8KG/KG ACC |
| Size | 2200*1500*2000mm |
| Voltage | 380V/50Hz |
4. Crucial Benefits for Wastewater Operations
Upgrading your plant to the SHT-800G transforms your daily operational workflow. You gain immediate advantages across safety, cost, and also compliance.
Immediate Safety Upgrade
Traditional chlorine gas cylinders pose a major chemical hazard. A sudden leak can threaten your staff and nearby communities. In contrast, the SHT-800G generates disinfectant on-demand. You store only harmless salt on your site, which completely removes public safety risks.
Unbeatable Cost Efficiency
Commercial chemical prices fluctuate wildly due to transport and supply chain issues. Meanwhile, salt and electricity remain cheap and highly accessible. By manufacturing your own disinfectant on-site, you slash operational expenses. Most sewage plants achieve a full return on investment (ROI) within 18 to 24 months.
Stable Compliance and High Performance
Commercial liquid chlorine degrades rapidly during storage, losing up to 50% of its strength in hot weather. This degradation leads to inconsistent dosing and compliance risks. The SHT-800G delivers fresh, full-strength sanitizer every minute. Therefore, your treated water consistently meets national environmental discharge limits.
5. World-Class Product Service: Our Commitment to Your Plant
Excellent hardware forms only half of the solution. We believe that heavy-duty equipment requires equally robust service. Therefore, we back the SHT-800G with a comprehensive lifecycle service program. We support your engineering and operational teams from start to finish.
24/7 Rapid Technical Response
Wastewater treatment plants run continuously without breaks. Because your operations never stop, our support never stops either. We provide a dedicated 24/7 technical service hotline. If an operational question arises, our team provides instant remote troubleshooting. If you require physical assistance, we dispatch local field technicians immediately to resolve the issue.
Summary: Future-Proof Your Facility Today
To sum up, the SHT-800G Sodium Hypochlorite Generator offers the ultimate upgrade for modern wastewater treatment. It blends premium industrial quality, smart automation, and reliable safety into a single, cohesive package. By producing your own disinfectant, you protect your operational budget, your workforce, and the local ecosystem.
Furthermore, our unmatched technical service team ensures smooth, hassle-free operations from day one. You focus on running an efficient facility. We will ensure your water disinfection remains flawless.
Contact our project engineering team today to receive a detailed cost analysis and also a customized installation blueprint for your site!
FAQ
1.What raw materials does the SHT-800G require？
The system requires only three stable inputs: ordinary salt, water, and electricity.
2.Wastewater flow fluctuates heavily throughout the day. How does the system adapt?
The SHT-800G features a smart Siemens PLC control center that communicates directly with your facility’s flow meters. As wastewater volume rises or drops, the system automatically adjusts its electrical current and dosing pump speeds in real time. This ensures precise, automated chlorine delivery without manual human adjustments at the same time.
