Application of hypochlorous acid generator in medical field

In the medical environment. Effective and safe disinfection is the lifeline to prevent nosocomial infection and ensure the safety of patients and doctors. With the increase of microbial resistance and the increasingly stringent standards of infection control. The limitations of traditional disinfectants (such as chlorinated disinfectants, alcohol, aldehydes) have gradually become prominent: strong corrosive, irritating, residual toxic, environmentally unfriendly, and may produce drug-resistant strains. In this context, hypochlorous acid generator. As a cutting-edge technology to generate efficient and safe disinfectants on site. Is leading a profound change in the field of medical disinfection.

Hypochlorous acid is not a new chemical. In fact, it is the core antibacterial substance naturally secreted by white blood cells (neutrophils) in the human immune system to defend against invading pathogens. This innate characteristic produced by the human body lays the unique foundation for its high biocompatibility. Gentleness and efficiency.

Unlike traditional chlorinated disinfectants (sodium hypochlorite, or 84 disinfectant). Hypochlorous acid has the following key properties:

• Small molecule, neutral: can quickly penetrate the microbial cell wall/membrane, destroy its structure, bactericidal rapid and broad spectrum.
• Strong oxidation capacity: in the range of close to neutral (pH 5.0-6.5). The proportion of effective bactericidal components (free effective chlorine) is extremely high. And the oxidation efficiency is much higher than that of sodium hypochlorite under alkaline conditions.

Model Name	Application of hypochlorous acid generator in medical field FL-SAEW-1000，2000，4000，6000，9000
flow	100L/H,200L/H，300L/H，500L/H，1000L/H（Flow can be customized）
Concentration	10-1000PPM（Adjustable）
Electrolyte	Salt（Nacl) Or Hydrochloric acid(HCL）Potassium chloride (KCL)
Hypochlorous acid PH	5-6.5
Sodium hydroxide PH	10-13.5
Voltage	220V/50Hz，380V/50Hz，110V/60Hz
The proportion of hypochlorous acid in ACC	98.50%
Softened water system	One on standby and one in use
Weight	95kg，120kg,180kg，210kg
Dimensions of hypochlorous acid generator	460*420*1200mm

Hypochlorous acid generator through electrolysis technology. The pure water (or add trace salt) into a certain concentration of hypochlorous acid solution. This technology path brings disruptive advantages:

• Safety to human body: hypochlorous acid solution with appropriate concentration (usually 80-200ppm) is non-toxic and non-stimulating. And can be directly used for skin, mucosa, wound irrigation, and even oral care, which greatly reduces the discomfort of medical staff’s hand skin damage and patient treatment.
• Equipment friendly: the corrosion is much lower than the traditional chlorine disinfectant. Can be safely used for disinfection of precision medical instruments (such as endoscope). Electronic equipment surface. Prolong the life of equipment.

• It has a rapid killing effect on bacteria (including MRSA, VRE and other multi-drug resistant bacteria). Viruses (enveloped and non-enveloped viruses, such as coronavirus, norovirus), fungi, Mycobacterium tuberculosis and even bacterial spores, which meets the highest level of disinfection requirements.

• On-demand production: on-site preparation eliminates the problem of concentration attenuation and failure in the transportation and storage of commercial disinfectants.
• Precise and controllable concentration: the output concentration can be flexibly adjusted according to different application scenarios (environment, equipment, skin) to achieve precise disinfection.
• Lower overall costs: Although the equipment has initial investment, in the long term, the raw materials are only water and electricity (or trace salts), which reduces the cost of single use and reduces equipment maintenance and medical costs due to disinfectant related injuries.

• No harmful chemical residues, decomposition products for water, medical wastewater treatment system friendly, green environmental protection.

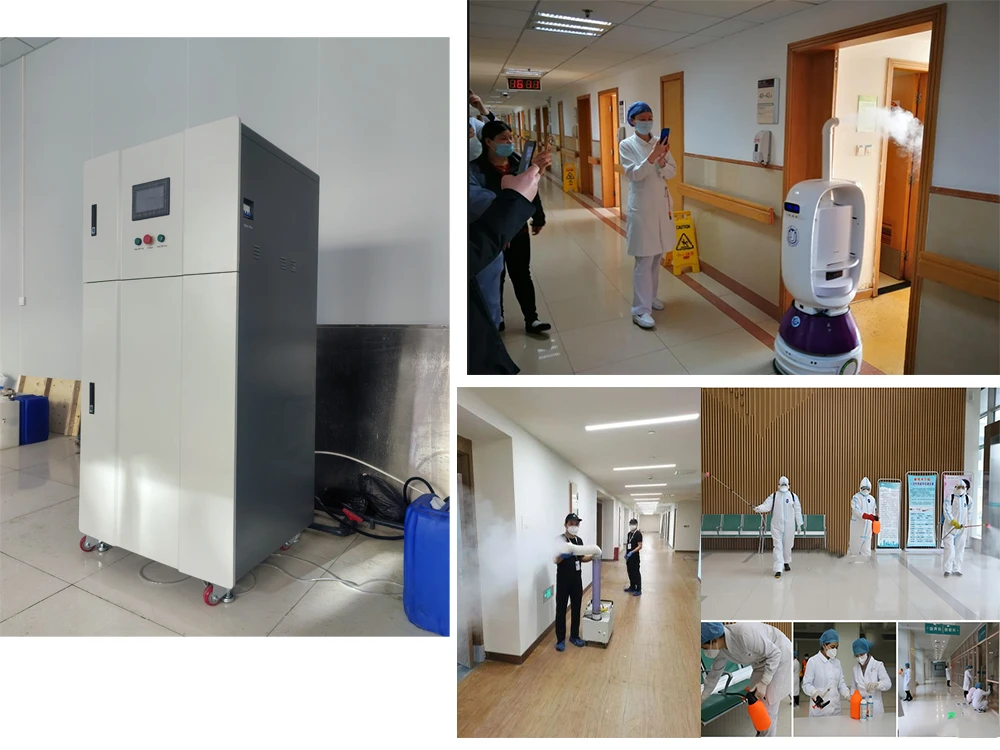

• Terminal disinfection of wards and ICU: atomization or spray disinfection, no dead Angle coverage, personnel can safely enter within a short time after disinfection, and improve the turnover rate of wards.
• High-frequency contact surfaces: door handles, callers, bed rails, treatment vehicles, etc., can be frequently wipe, safe and no residual odor.
• Operating room disinfection: replace some irritating disinfectants, used for postoperative environment cleaning.

• Endoscope pretreatment and cleaning: Pretreatment at the bedside can immediately kill pathogens, prevent biofilm formation, and is non-corrosive to expensive endoscopes. Can be use for manual cleaning or automatic cleaning sterilizer.
• Precision instruments immersion disinfection: suitable for high temperature resistant instruments.
• Disinfection of respiratory lines, humidifying bottles, etc

• Hand hygiene: It can be use as an ideal choice for surgical hand disinfection and sanitary hand disinfection, moisturizing and not hurting hands.
• Wound care: Used for irrigation and wet compress of acute and chronic wounds (such as pressure ulcers, diabetic foot, burn wounds), which can effectively control biofilm, promote healing, and do not damage granulation tissue.
• Oral and airway care: used for oral ulcers, periodontal care, tracheotomy care, safe to swallow a small amount.
• Preoperative skin preparation.

• In response to events such as norovirus infections and outbreaks of multidrug-resistant bacteria, the environment and objects can be efficiently disinfect quickly and widely, and the chain of transmission can be interrupt.

When used according to specifications, hypochlorous acid has high safety:

• The skin and mucous membrane irritant is much lower than the traditional chlorine disinfectant
• No teratogenic, carcinogenic, mutagenic risk
• No inflammable and explosive risk
• However, it is still necessary to avoid direct contact with eyes and prolonged contact with skin at high concentrations
