Traditionally, hospitals relied on delivering and storing bulk commercial sodium hypochlorite or, in some cases, highly hazardous chlorine gas. These methods, while functional, come with a heavy price. They involve significant safety risks, logistical nightmares, and also unpredictable costs.
Today, there is a better way. A smarter way. A safer way.

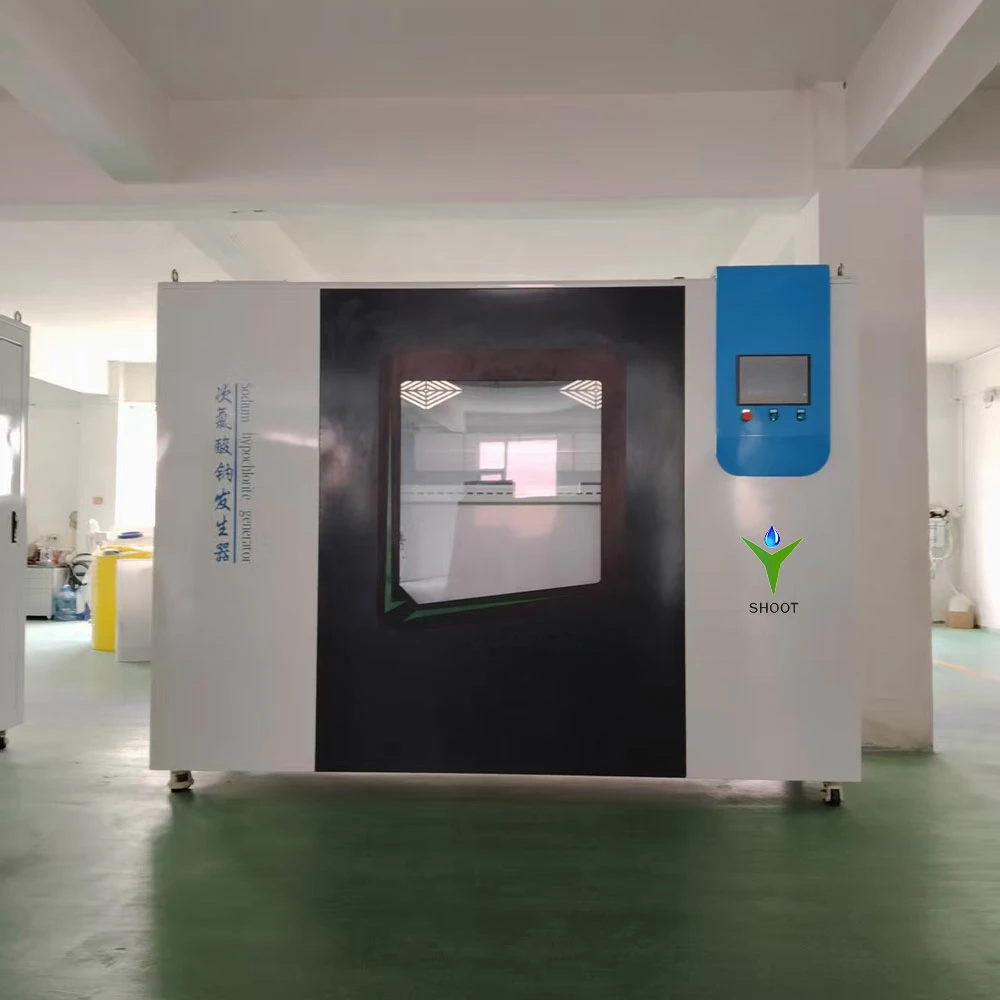

Introducing the SHOOT on-site Sodium Hypochlorite Generator. This is not just an equipment upgrade; meanwhile, it is a fundamental shift in how modern healthcare facilities manage disinfection. Our system empowers you to produce your own disinfectant on-site, on-demand. It uses only three simple ingredients: salt, water, and electricity.
1. Sodium hypochlorite generator parameter
| Product name | SHT-2000G |
|---|---|
| Effective chlorine yield | 2000g/H |
| Concentration | 6-10g/L（6000-10000ppm） |
| Power | 12KW |
| Salt consumption | 3.2KG/KG |
| Size | 2000*1100*1900mm |
| Voltage | 380V/50hz |
2. The SHOOT generator is engineered around three core principles for the modern hospital
1. High Integration: A compact, all-in-one design for maximum efficiency in minimal space.
2. Smart Connectivity: Full network and IoT capabilities for remote monitoring and control.
3. Uncompromising Safety: An inherently safe design that eliminates the most significant risks associated with traditional chemical disinfection at the same time.
3. From Hazard to Control: The Power of On-Site Generation
The SHOOT generator uses a technology called electrolysis. Here is the simple breakdown:
1. Brine Creation: We start by dissolving high-purity salt in softened water to create a saturated brine solution.
2. Electrolysis: This brine is then precisely diluted and passed through a specialized electrolytic cell. This cell contains advanced titanium electrodes powered by a controlled electrical current.
3. Conversion: The electricity passing through the saltwater transforms the sodium chloride (NaCl) and water (H2O) into a low-concentration, highly effective sodium hypochlorite (NaOCl) solution. The only other by-product is hydrogen gas, which is safely and also actively vented.
4. The result is a fresh, potent disinfectant with a concentration of less than 1.0%. This is a crucial point. Because the solution is generated at a low concentration, it is classified as non-hazardous by most regulatory bodies. This single fact fundamentally changes the safety profile of your entire disinfection process at the same time.
Feature Deep Dive 1:
Maximum Power, Minimum Footprint — The Highly Integrated SHOOT System
One of the most pressing constraints in any hospital is space. Every square meter is valuable. Older disinfection systems are often a sprawling collection of separate tanks, pumps, control panels, and tubing, consuming precious floor space in utility rooms.
The SHOOT team recognized this challenge from day one. That is why our generator is built on a philosophy of high integration.
What “High Integration” Means for You:
Our engineers have meticulously designed the SHOOT generator as a single, skid-mounted unit. This means that all essential components are pre-plumbed, pre-wired, and also mounted onto a single, robust frame.
A typical SHOOT system includes:
1. Water Softener: To protect the system and ensure optimal performance.
2. Brine Tank: For creating the initial saltwater solution.
3. Electrolytic Cell Housing: The core of the system, fully contained and protected.
4. Product Storage Tank: To hold the freshly generated sodium hypochlorite.
5. Dosing Pumps: For precise injection of the disinfectant into the wastewater stream at the same time.
6. Central Control Panel: The intelligent brain of the entire operation.
Feature Deep Dive 2:
Intelligent Disinfection — Welcome to the Future with IoT Connectivity
In today’s connected world, mission-critical systems should not operate in isolation. A modern hospital relies on data and also remote access to operate efficiently and safely. Your disinfection system should be no different. This is why the SHOOT generator is a fully network-capable, smart device.
We have moved beyond the simple on/off switches and also analog dials of the past. The SHOOT system is equipped with a sophisticated Programmable Logic Controller (PLC) and a user-friendly Human-Machine Interface (HMI) touchscreen. But its true power lies in its ability to connect.
Unlock the Power of Remote Monitoring and Control:
Through a standard Ethernet connection, the SHOOT generator can be securely integrated into your hospital’s network. This opens up a new world of possibilities for control and oversight.
1. Real-Time System Status: Facility managers can monitor the generator’s status from anywhere, at any time. From the office computer or a mobile device, you can check operational parameters like production rate, tank levels, system pressures, and also current dosage.
2. Remote Adjustments: Need to increase the production rate in response to a higher patient load? Meanwhile, you can make adjustments remotely without needing to be physically in front of the machine. This provides unparalleled operational flexibility.
3. Instantaneous Alerts and Alarms: The system will automatically send email or SMS notifications for any critical alerts. Meanwhile, this could be a low salt warning, a maintenance reminder, or a fault condition. This proactive approach allows you to address potential issues before they become problems, ensuring continuous operation.
Feature Deep Dive 3:
A Fortress of Safety — Engineered for Peace of Mind
Safety is the single most important consideration in a healthcare environment. The decision to switch to on-site generation with a SHOOT system is, first and foremost, a decision to dramatically enhance the safety of your staff, patients, and also community.
We have engineered safety into every aspect of our generator, from the core process to the smallest component.
1. Eliminating Chemical Transportation and Storage Hazards:
The greatest safety benefit comes from what you eliminate. With the SHOOT generator, you eliminate:
The transportation of hazardous chemicals to your site. This removes the risk of road accidents and spills in the community.
The delivery and unloading process. No more forklifts moving large drums of corrosive chemicals, a common source of workplace accidents.
The storage of bulk high-concentration bleach. Commercial bleach (12-15% concentration) is highly corrosive, degrades over time, and can release dangerous chlorine gas if accidentally mixed with acidic substances. The SHOOT system replaces your entire chemical storage area with a few bags of inert, safe-to-handle salt.
2. Inherently Safe Low-Concentration Solution:
The sodium hypochlorite produced by the SHOOT generator is powerful, but gentle. At a concentration of less than 1.0%, it is significantly safer for operators to handle than bulk bleach. It has a lower corrosion potential and also reduced risk of off-gassing. This creates a safer working environment for your maintenance and facilities staff.
3. Advanced Operational Safety Features:
Beyond the inherent safety of the process, the SHOOT generator is packed with active safety systems:
Forced Hydrogen Ventilation: The electrolysis process produces a small amount of hydrogen gas. Meanwhile, our system includes a high-efficiency, monitored ventilation fan that actively removes and dilutes this hydrogen well below the lower explosive limit. A sensor confirms that the fan is operational before the system will start, ensuring this critical safety feature is always working.
4. Why SHOOT? Your Partner in Advanced Disinfection
There are other on-site generation systems on the market. However, SHOOT stands apart through our relentless focus on quality, innovation, and partnership. Therefore, we are not just an equipment vendor; we are a solutions provider dedicated to the healthcare industry.
When you choose SHOOT, you choose:
1. Engineering Excellence: Our systems are the result of years of research and development, specifically tailored to the demanding requirements of hospital applications.
2. Unwavering Quality: From our proprietary electrode coatings to our industrial-grade PLCs, every component is selected for its reliability and also long service life.
3. Dedicated Support: Our team of experts is here to support you through every stage of the process, from initial consultation and system sizing to installation, training, and also ongoing service.
5. Ideal Applications
The SHOOT Series, with its production capacity ranging from 50 to 500 grams of chlorine equivalent per hour, is perfectly suite for a wide variety of small to medium-scale applications at the same time.
1. Township and Village Water Works: The primary application. Meanwhile, a single unit can treat the water supply for a population of 500 to 50,000 people.
2. Community Wells and Boreholes: Ensure the safety of water drawn from local groundwater sources.
3. Remote Hospitals and Schools: Provide a reliable source of disinfected water for critical institutions, improving hygiene and also preventing infections.
4. Small Residential or Commercial Complexes: Ideal for apartment buildings, labor camps, or hotels located away from municipal services.
5. Agricultural and Livestock Operations: Disinfect water for irrigation or for animal consumption to prevent the spread of disease at the same time.
6. Emergency and Disaster Relief: The skid-mounted design allows for rapid deployment to disaster areas to provide safe drinking water in the critical hours and days following an event at the same time.
FAQ
1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.
2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.
3. How to handle maintenance?
Automated alerts guide servicing.

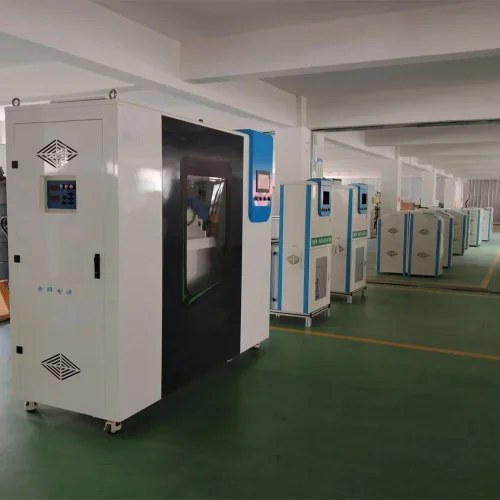

Factory advantage
We have R&D centers, production centers, data centers and marketing centers. It is committe to providing technical support and innovative applications for improving public health security. Since its establishment, the company has obtained 12 invention patents and environmental management system certification. The company also has more than 30 test reports, covering surface and other different concentration detection projects. The series products sell well all over the country, and exported to such as Thailand, Malaysia, Cambodia, Brazil, South Africa, South America and other more than 20 countries and regions. The company has a perfect product sales and service system. To meet the needs of different customers with more professional services. So that to provide the best products and services for public health!
