SHT-5000G Sodium Hypochlorite Generator

Power plants rely heavily on massive volumes of cooling water to maintain operational efficiency. However, biological fouling remains a constant threat. Algae, bacteria, and slime build up in heat exchangers and also condensers. This reduces heat transfer efficiency and risks costly equipment corrosion.

The SHT-5000G Sodium Hypochlorite Generator offers a high-performance, on-site solution. It eliminates the need for hazardous liquid chlorine. Instead, it produces a high-purity disinfectant using only salt, water, and electricity.

1. Sodium hypochlorite generator parameter

Product name	SHT-5000G
Effective chlorine yield	5000g/H
Concentration	6-8g/L（6000-8000ppm）
Power	32KW
Salt consumption	3.2KG/KG
Size	20009002000mm
Voltage	380V/50hz（Convertible）

2. Core Working Principle

The SHT-5000G utilizes an advanced non-membrane electrolysis process. It converts a diluted brine solution (or natural seawater) into sodium hypochlorite

Our system optimizes this reaction to ensure the highest possible “active chlorine” yield while minimizing energy consumption.

3. Professional Dosing Strategies

Efficient water treatment depends on the right concentration. The SHT-5000G supports the two industry-standard dosing modes for power plants.

A. Continuous Dosing Mode

Target Concentration: Maintain residual chlorine between 0.1 – 0.5 mg/L (ppm).
How it Works: The system injects a steady stream of NaClO into the circulating water.
The Benefit: This is the most common method. It creates a “zero-tolerance” environment for microbes. It keeps the system stable and also is incredibly easy to manage.

B. Shock Dosing (Slug Feed) Mode

Target Concentration: Rapidly boost residual chlorine to 0.5 – 1.0 mg/L (ppm).

Duration: Maintain this peak for 1–2 hours.

Frequency: Usually 1–2 times per day, depending on biological monitoring (slime levels or heterotrophic plate counts).

The Benefit: This “heavy hit” kills stubborn algae and strips away existing bio-slime. While it requires better automation, it often uses less total chemical than continuous dosing.

Critical Note: These values refer to the residual chlorine target in the cooling water, not the concentration of the raw solution produced by the generator.

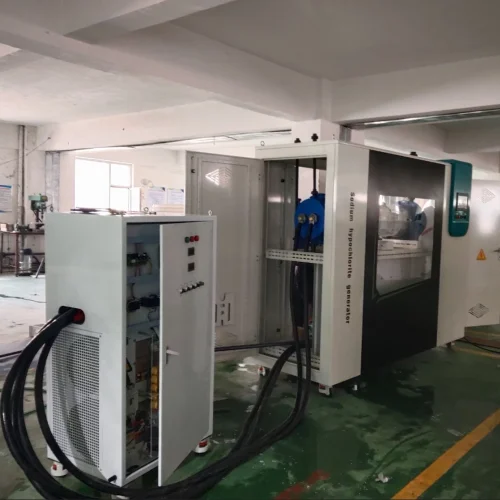

Sodium hypochlorite generator in use at the site

4. Why Choose the SHT-5000G? (Product Advantages)

Exceptional Safety

Safety is our priority. Unlike liquid chlorine, which poses a massive inhalation risk, the SHT-5000G produces a low-concentration solution (usually <1%). You no longer need to worry about chemical leaks, specialized hazmat storage, or dangerous transportation.

Superior Durability

The heart of the SHT-5000G is its Pure Titanium Electrode. We coat it with a proprietary Ruthenium-Iridium oxide layer at the same time. This ensures a service life exceeding 5 years under heavy industrial use.

High-Precision Control

We equip the SHT-5000G with a Siemens PLC and also a high-resolution touchscreen. The system integrates perfectly with your plant’s DCS (Distributed Control System). It adjusts output automatically based on real-time flow and also residual chlorine sensors.

Energy Efficiency

Our unique bipolar electrode design reduces internal resistance. This means you get more active chlorine for every kilowatt-hour of power. It significantly lowers your long-term OpEx (Operating Expenses).

5. Our Service Advantage: Beyond the Machine

We do not just sell equipment; we provide a total water safety partnership.

Custom Engineering and Calculation

Calculating the actual dosage requires expertise. Our engineers help you factor in:

Circulating water flow rates.

Water quality (COD and Ammonia Nitrogen levels).

Chlorine demand and degradation rates. We ensure your SHT-5000G is sized perfectly for your specific environment at the same time.

24/7 Technical Support

Power plants never sleep, and neither does our support. We provide a dedicated response team for troubleshooting and also optimization.

Comprehensive Lifecycle Maintenance

From the initial site survey to annual electrode health checks, we manage the technical details.

Comprehensive After-Sales Support

Sodium hypochlorite generator certificate

Sodium hypochlorite generator catalog

Sodium hypochlorite generator electrolytic cell

A Trusted Partner in Over 30 Countries

Our global success is not an accident. It is the result of a relentless focus on quality, performance, and also customer support. The SHT-5000G has been successfully deployed in hospitals, water treatment plants, and industrial facilities across Asia, Africa, Europe, and also the Americas.

This international footprint demonstrates the system’s versatility and also its ability to meet diverse international standards. When you choose the SHT-5000G, you are choosing a technology that is tested, proven, and trusted by professionals around the world.

FAQ

1. Is on-site generation safer than liquid chlorine?
Yes! No toxic gas storage or transport risks. The system produces only what you need at the same time.

2. What’s the maintenance requirement?
Minimal. Regular cell cleaning and also salt refills. Automated alerts simplify upkeep.

3. How to handle maintenance?
Automated alerts guide servicing.
